Home
>>
Chevy Truck
>>
2002
>>
Tracker 2WD L4-2.0L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
System Diagram
>>
Interior Lights
>>
IP Lamp Control, Shift Indicator Lamp
IP Lamp Control, Shift Indicator Lamp

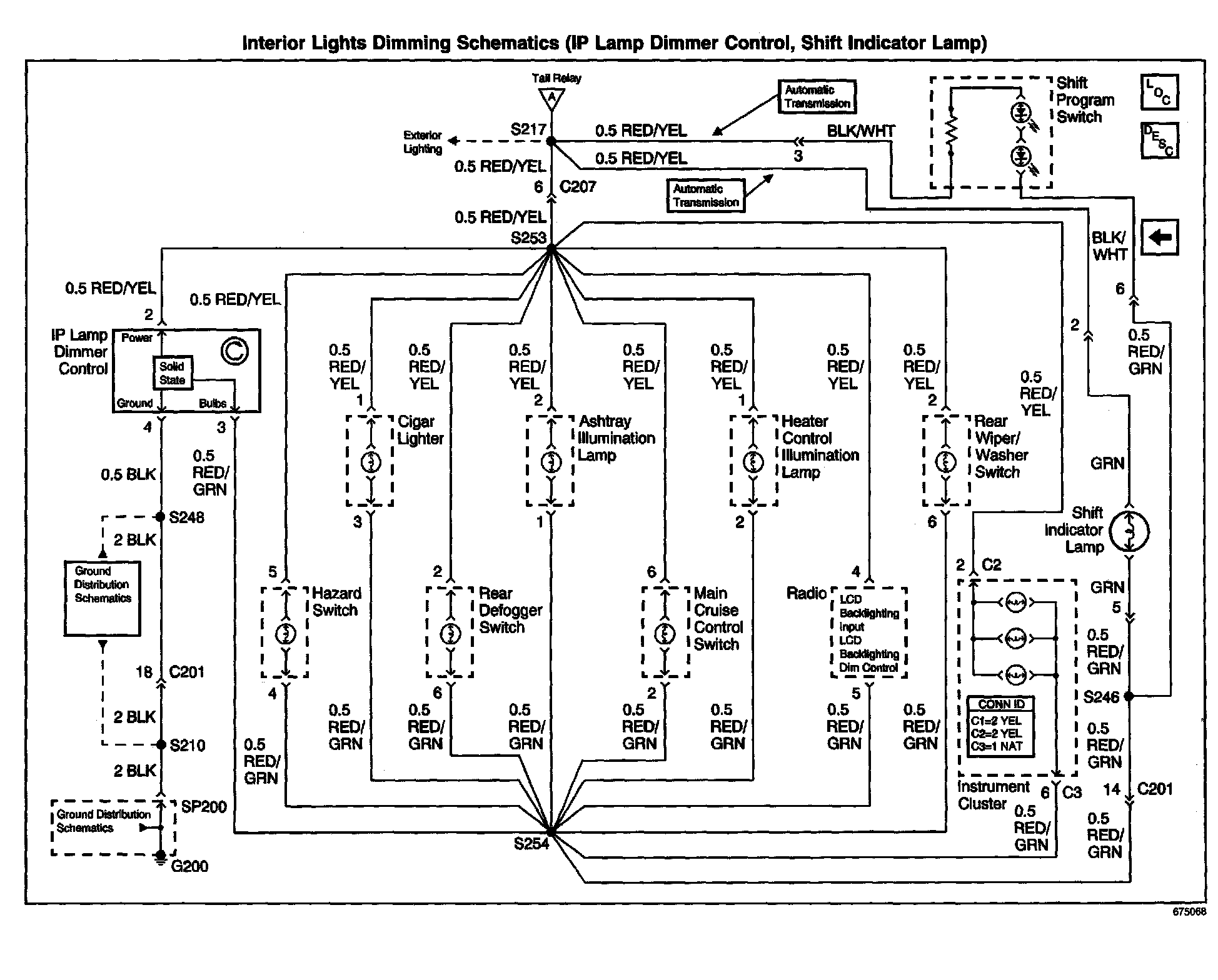

Interior Lights Dimming Schematics: IP Lamp Control, Shift Indicator Lamp:
