Hose Replacement - Rear Window - Washer Pump to End Gate

REMOVAL PROCEDURE




1. Remove the left front seat.
2. Remove the rear seat.
3. Remove the endgate/liftgate door sill plate.
4. Remove the left front and left rear door sill plates.
5. Remove the left body side trim panel.
6. Remove the left hinge pillar trim panel.
7. Fold over the left side of the carpet to allow access to the body harness. Refer to Mat/Carpet Replacement - Front Floor (Pickup) or Mat/Carpet Replacement - Front Floor (Extended Cab) or Mat/Carpet Replacement - Front Floor (Utility) and Carpet Replacement - Rear in Interior Trim.

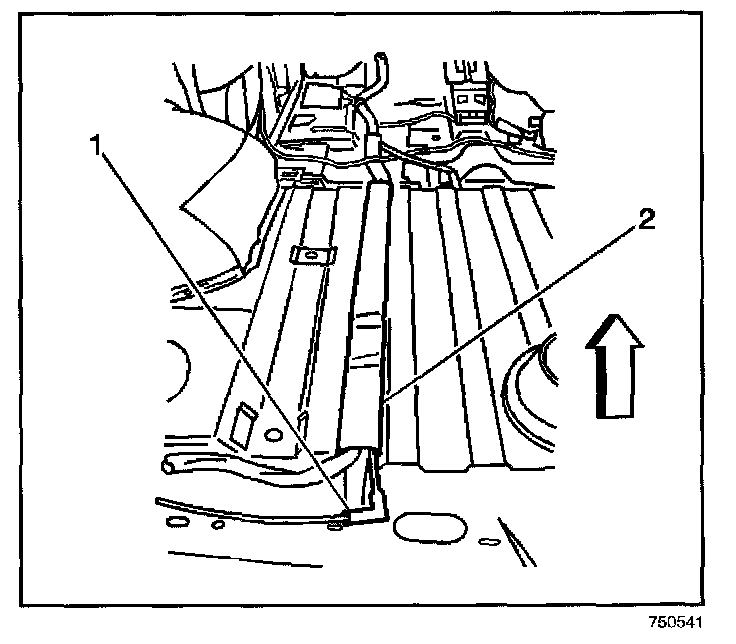

8. Disconnect the washer hose connection (1) from the body harness (2) at the endgate.




9. Remove the air cleaner assembly.

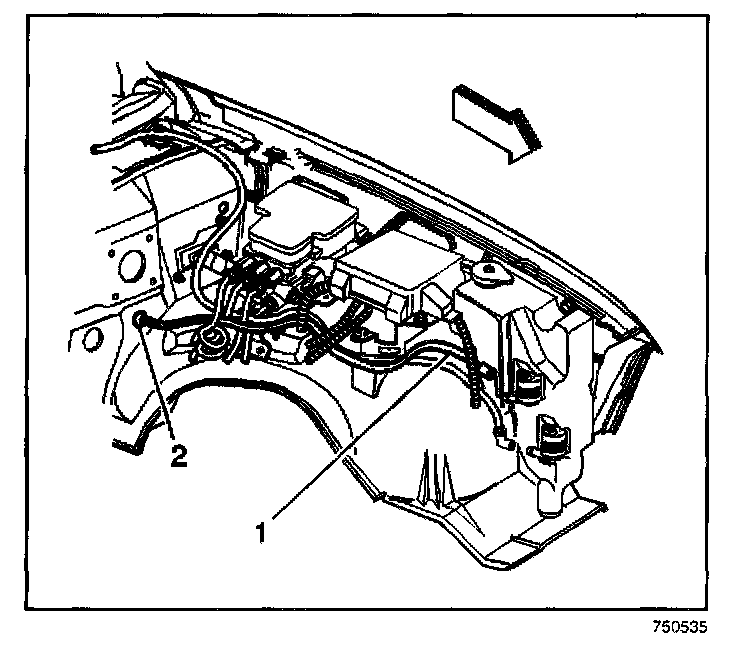

10. Disconnect the hose (1) from the rear washer pump.
11. Install a plug to the rear washer pump nozzle to prevent washer fluid loss.

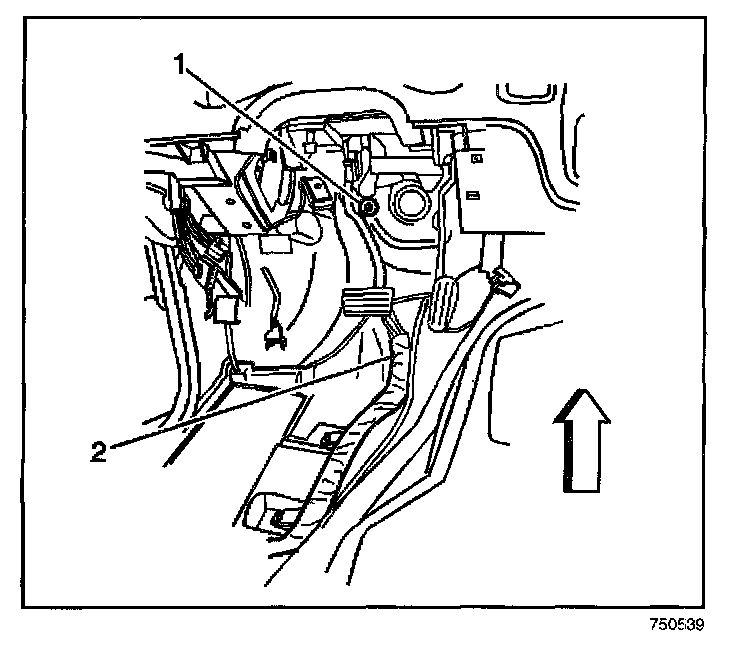

12. Push the hose grommet (2) in through the bulkhead.




13. Pull the washer hose (1) into the vehicle though the bulkhead.
14. Cut the old washer hose off where it enters the body wiring harness (2).
15. Remove the hose end from the vehicle.

INSTALLATION PROCEDURE




1. Install the hose to the vehicle.
2. Route the hose (1) out though the bulkhead.
3. Route the hose along the body harness (2), and tape the hose to the body harness with 3 wraps of electrical tape every 100 mm (4 in).




4. Seat the hose grommet (2) into the bulkhead.
5. Remove the plug from the rear washer pump nozzle.
6. Connect the hose (1) to the rear washer pump.
7. Install the air cleaner assembly.




8. Connect the washer hose connection (1) at the endgate.
9. Install the carpet.
10. Install the left hinge pillar trim panel.
11. Install the body side trim panel.
12. Install the left front and left rear door sill plates.
13. Install the endgate/liftgate door sill plate.
14. Install the rear seat.
15. Install the left front seat.
