Rear (Utility)

REMOVAL PROCEDURE




1. Remove the rear seat assembly.

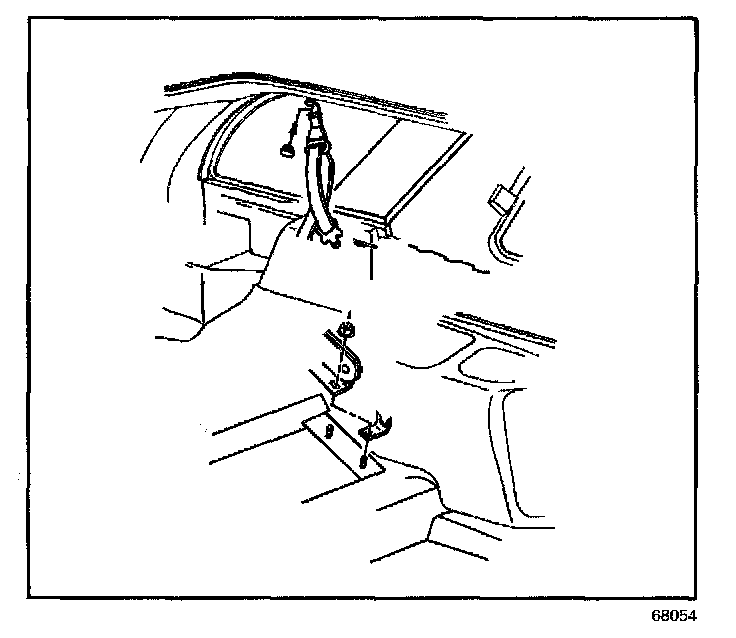

2. Remove the lower seat belt anchor plate from the rear seat bolt.

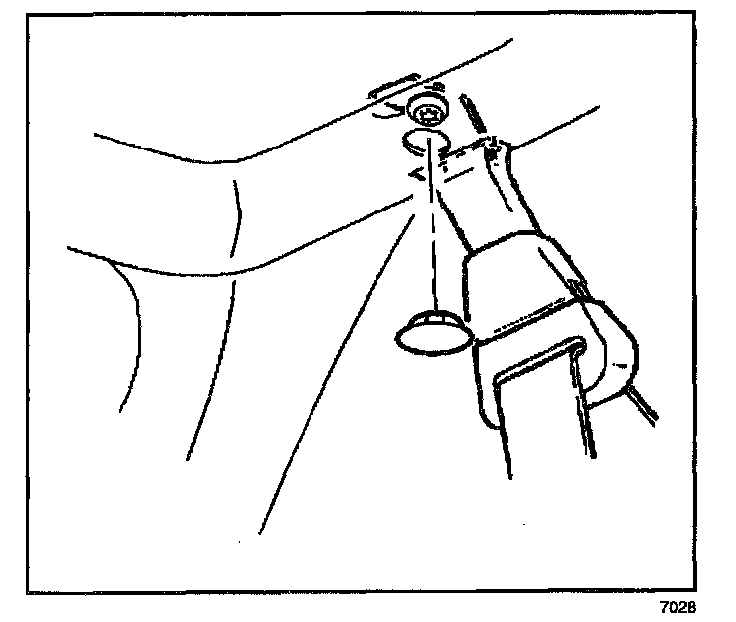

3. Remove the upper seat belt anchor bolt cover.

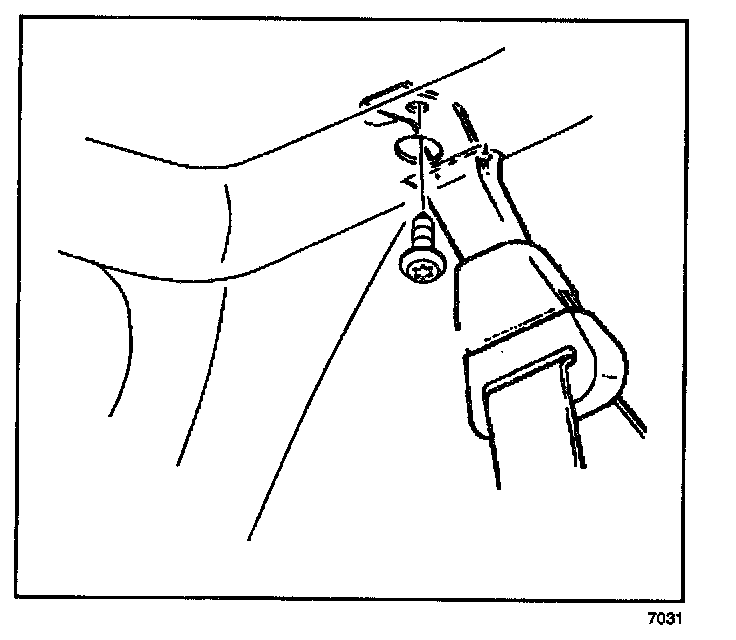

4. Remove the bolt that retains the upper seat belt anchor plate.
5. Remove the body side trim panel.
6. Guide the seat belt through the opening in the body side trim panel.

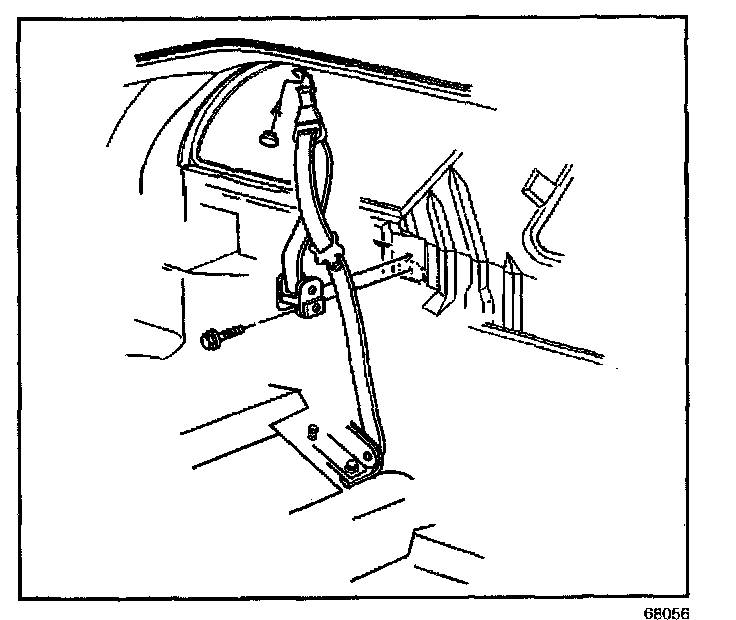

7. Remove the bolt that retains the seat belt retractor assembly to the vehicle.
8. Remove the seat belt retractor assembly from the vehicle.

INSTALLATION PROCEDURE




1. Install the seat belt retractor assembly to the vehicle.

NOTE: Refer to Fastener Notice in Service Precautions.

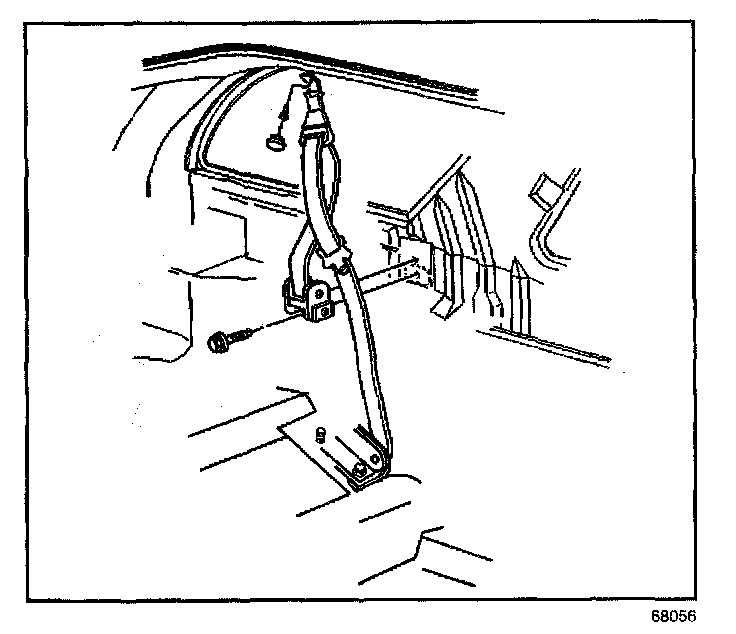

2. Install the bolt that retains the rear seat belt retractor assembly to the vehicle.

Tighten
Tighten the seat belt retractor assembly bolt to 70 N.m (52 lb ft).

3. Guide the seat belt through the opening in the body side trim panel.
4. Install the body side trim panel.

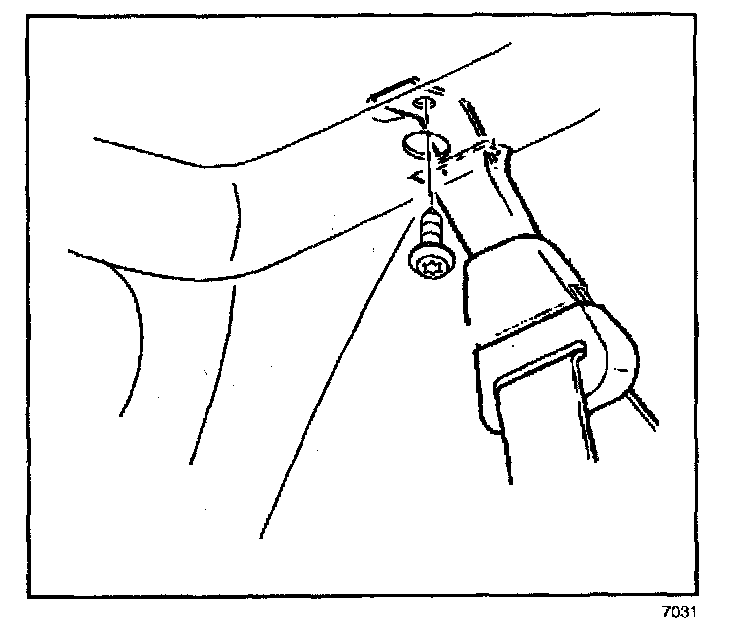

5. Install the upper seat belt anchor plate and bolt to the vehicle.

Tighten
Tighten the upper seat belt anchor plate bolt to 70 N.m (52 lb ft).

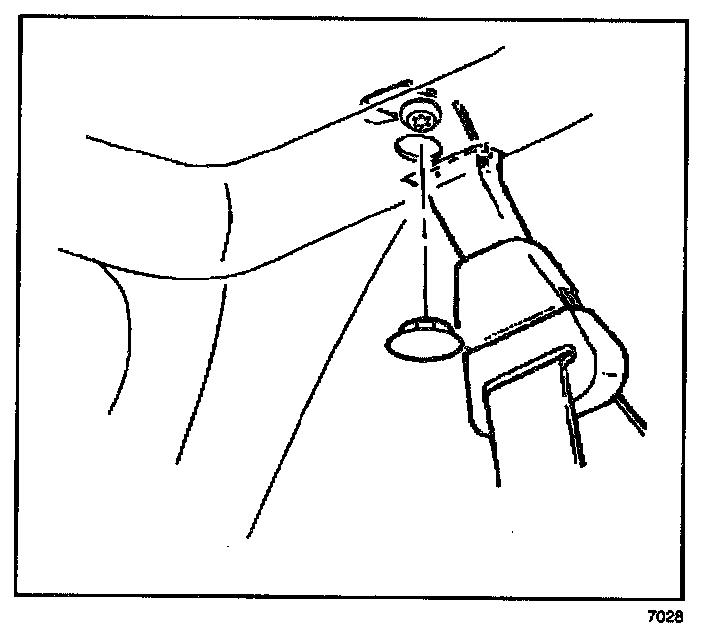

6. Install the upper seat belt anchor bolt cover.

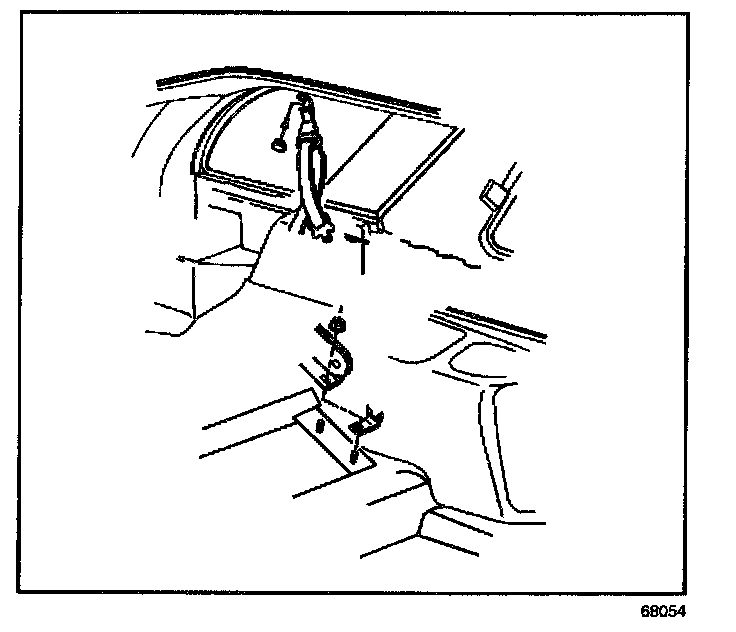

7. Install the lower seat belt anchor plate to the rear seat bolt.
8. Install the rear seat assembly.
