Chevy Truck
>>
2002
>>
S10/T10 P/U 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Locations
>>
Splice Locations
>>
Splice/Splice Packs By Number
>>
SP200 - SP299
>>
SP202
SP202
Locations View:

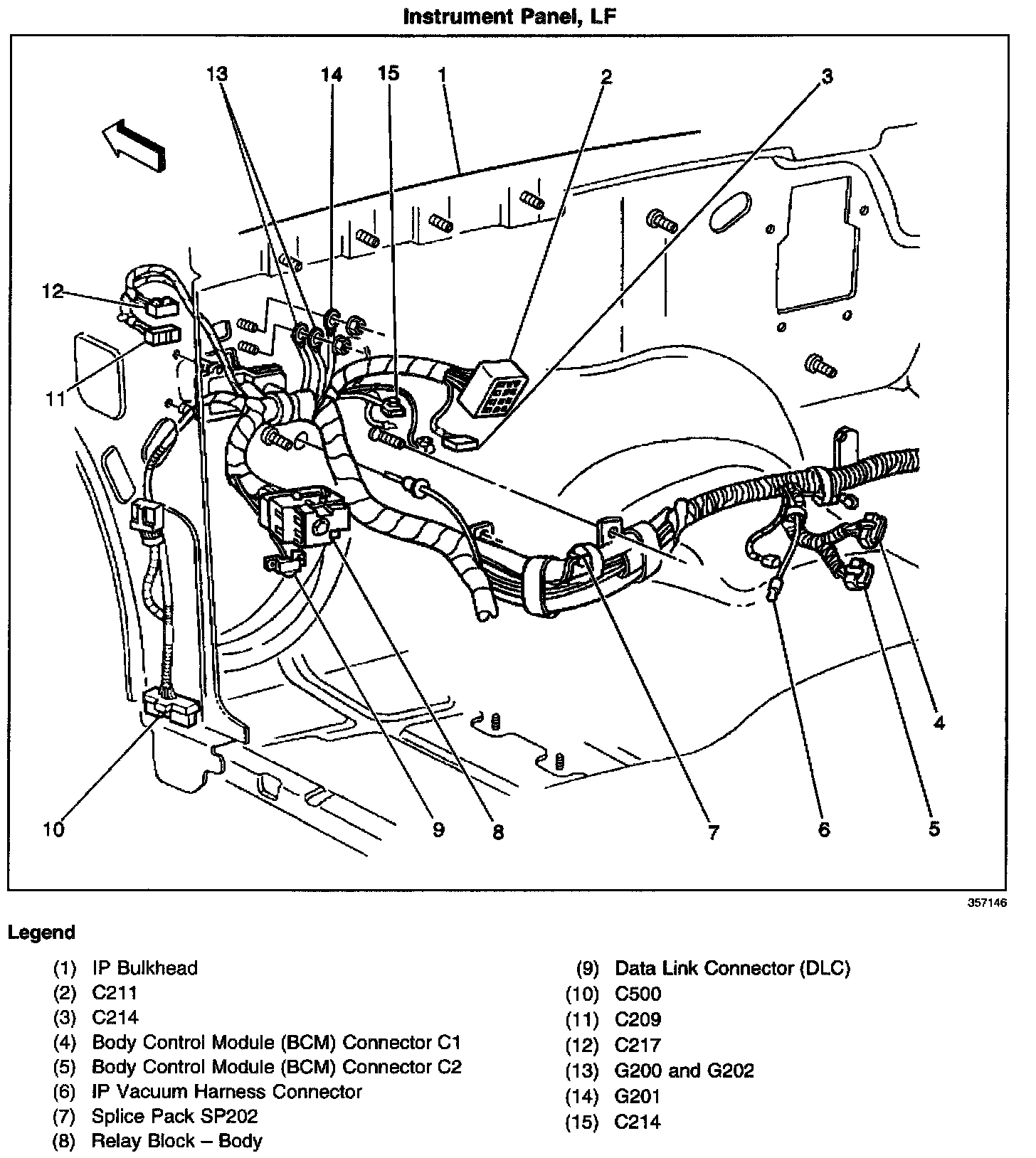

Harness Routing Views (Instrument Panel, LF):
