Locations
>>
Splice Locations
>>
Splice/Splice Packs By Number
>>
S600 - S699
S600 - S699

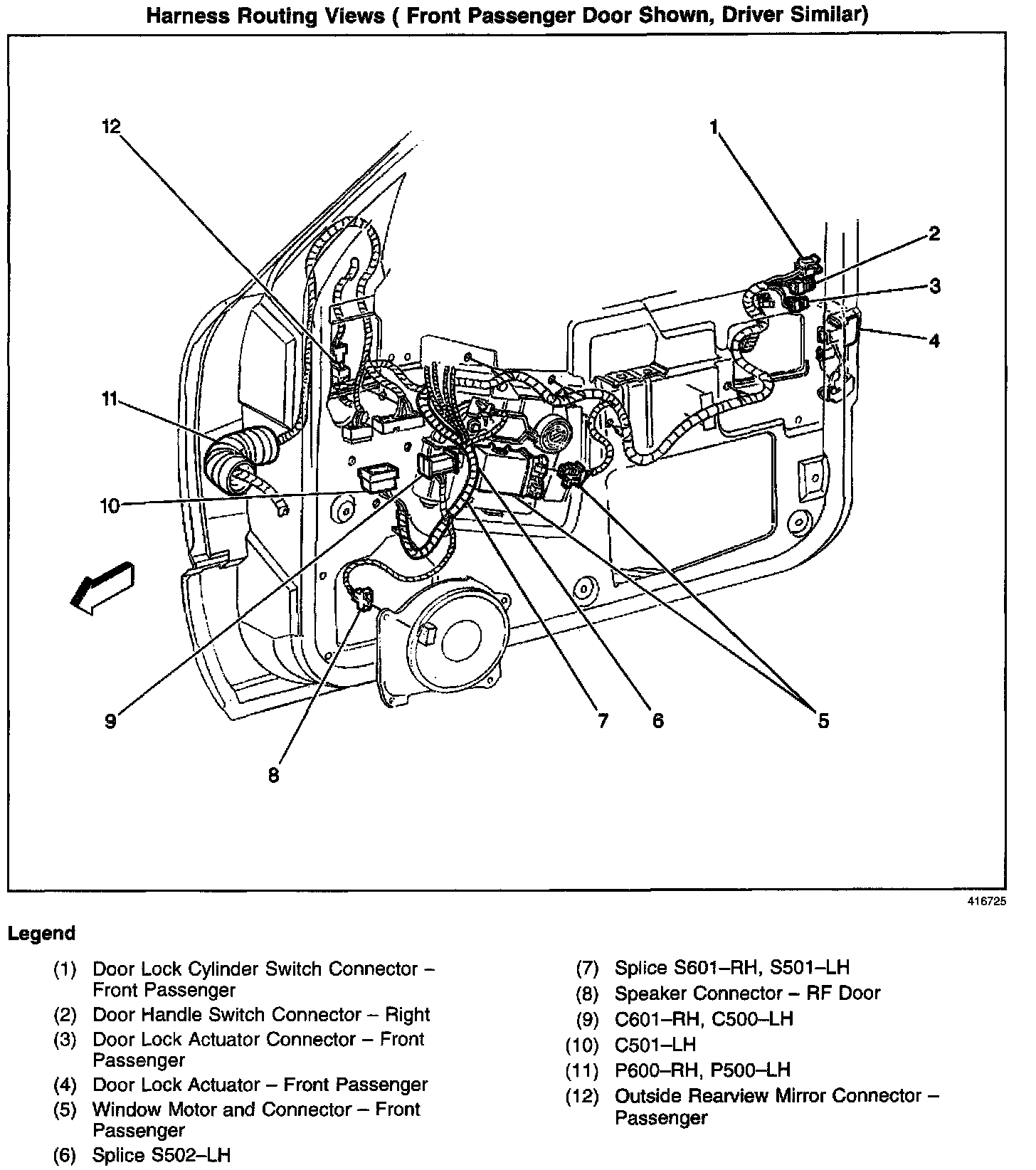

Harness Routing Views (Front Passenger Door Shown, Driver Similar):
