Home
>>
Chevy Truck
>>
2002
>>
S10/T10 P/U 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Locations
>>
Splice Locations
>>
Splice/Splice Packs By Number
>>
S100 - S199
>>
S151
S151

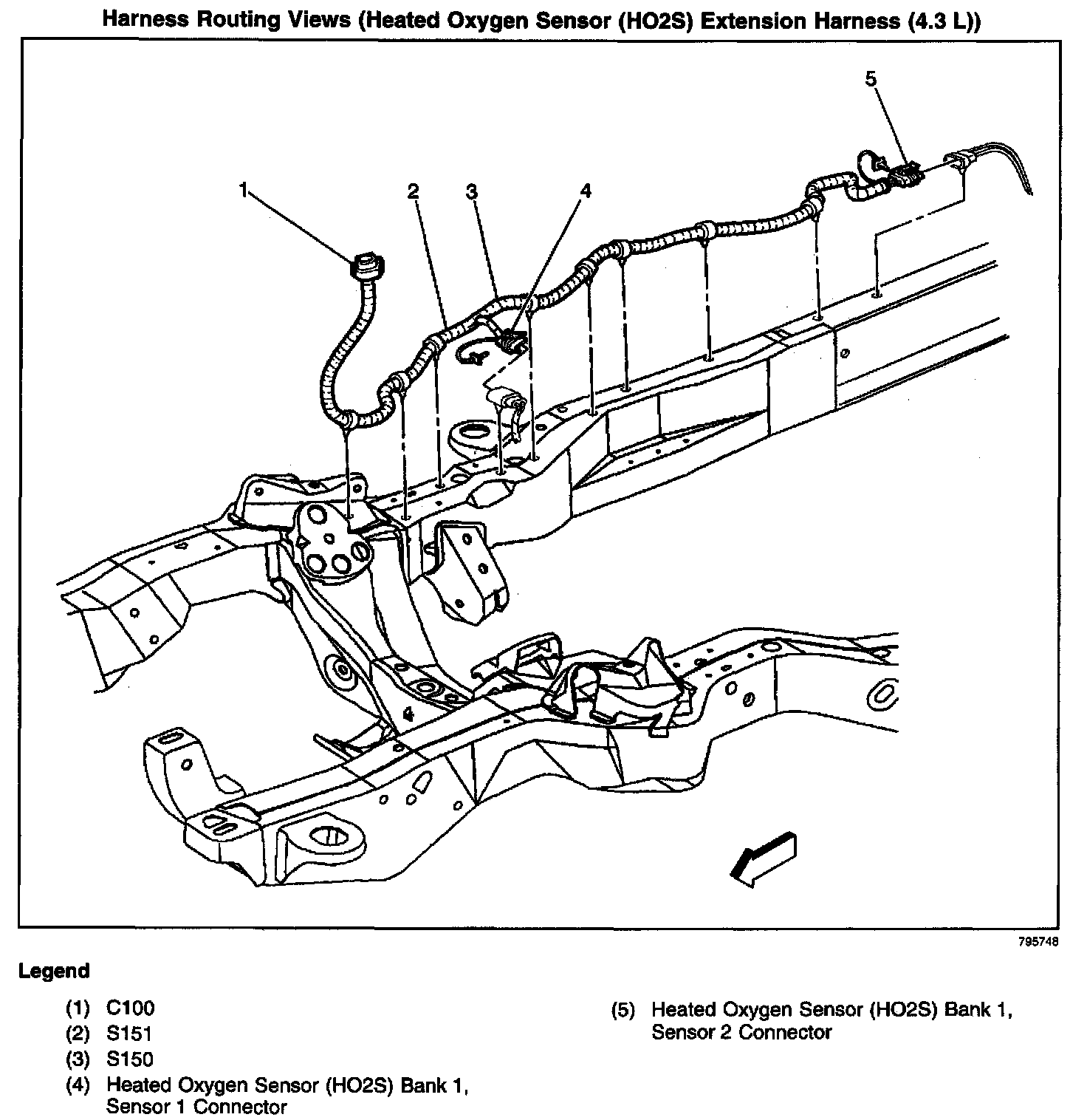

Harness Routing Views (Heated Oxygen Sensor (HO2S) Extension Harness (4.3 L)):
