HVAC Systems - Automatic

VACUUM CONTROL ASSEMBLY REPLACEMENT

REMOVAL PROCEDURE




1. Remove the instrument panel carrier.

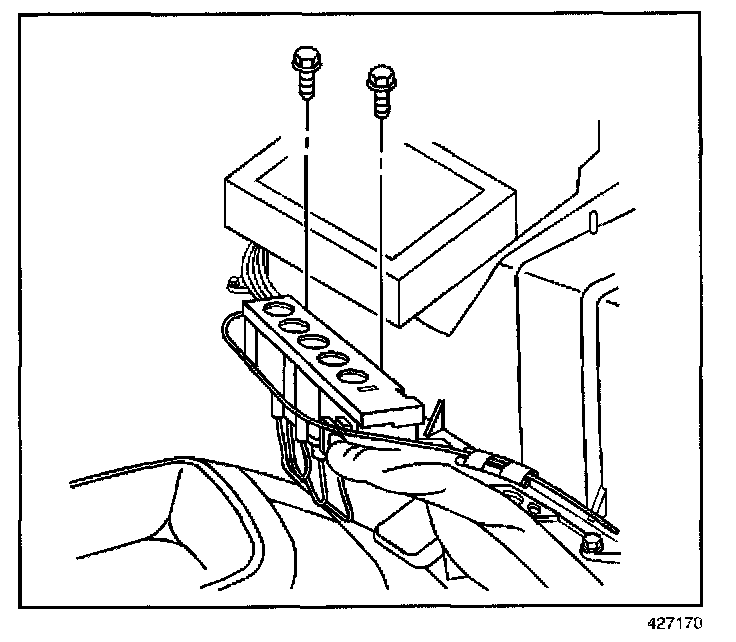

2. Disconnect the electrical connector (4) from the vacuum control assembly (5).
3. Disconnect the vacuum harness connector from the vacuum control assembly.




4. Remove the vacuum control assembly retaining screws.
5. Remove the vacuum control assembly from the vehicle.

INSTALLATION PROCEDURE




1. Install the vacuum control assembly to the vehicle.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the vacuum control assembly retaining screws.

Tighten
Tighten the screws to 2 N.m (18 lb in).




3. Connect the vacuum harness connector to the vacuum control assembly.
4. Connect the electrical connector (4) to the vacuum control assembly (5).
5. Install the instrument panel carrier.
