Chevy Truck
>>
2002
>>
S10/T10 P/U 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
>>
Lumbar Support Schematics
>>
Lumbar W/O Memory Seats
Lumbar W/O Memory Seats

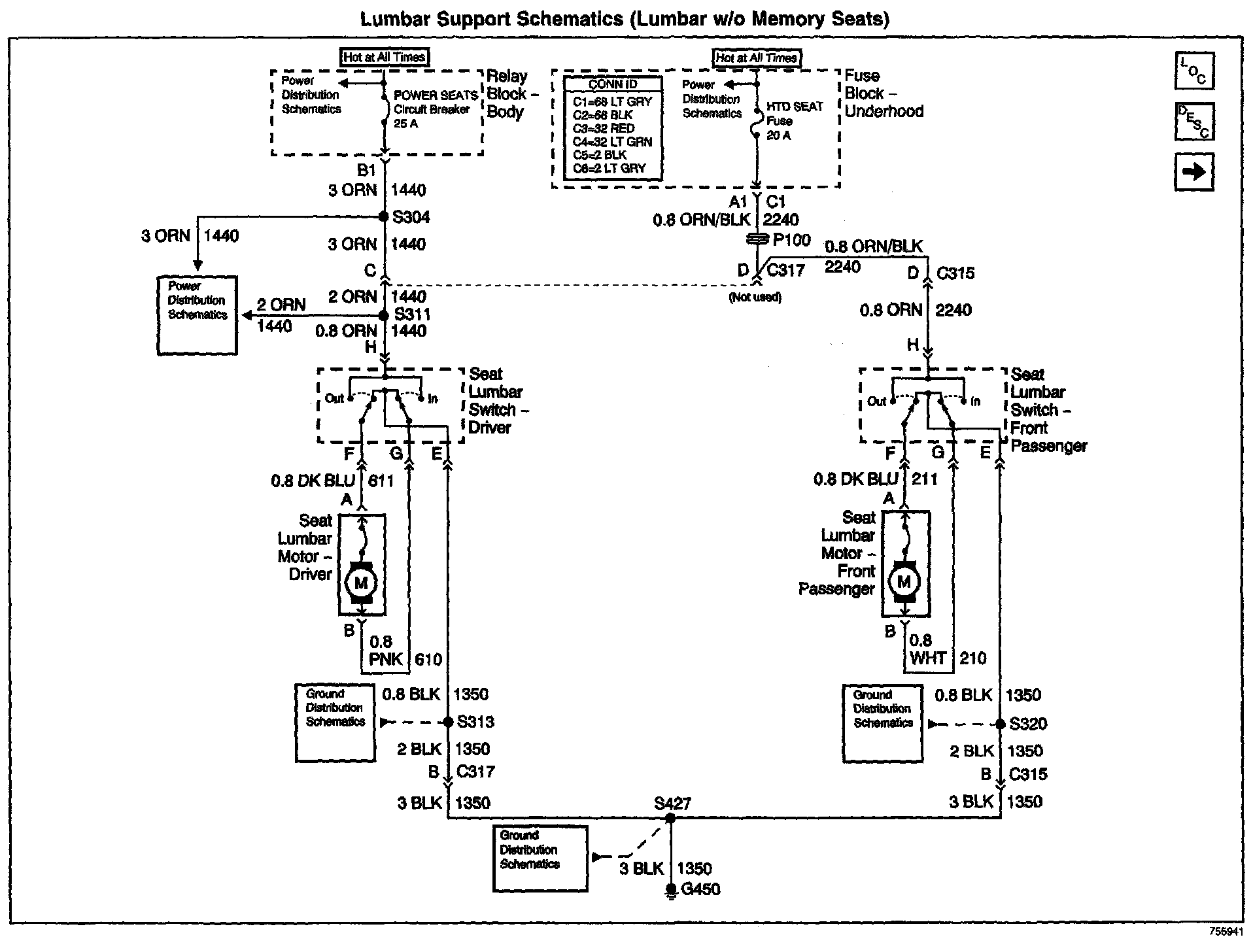

Lumbar Support Schematics: Lumbar W/O Memory Seats:
