Home
>>
Chevy Truck
>>
2002
>>
S10/T10 P/U 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Driver Information System Schematics
>>
Air Temperature Sensor - Outside - W/Trip Computer
Air Temperature Sensor - Outside - W/Trip Computer

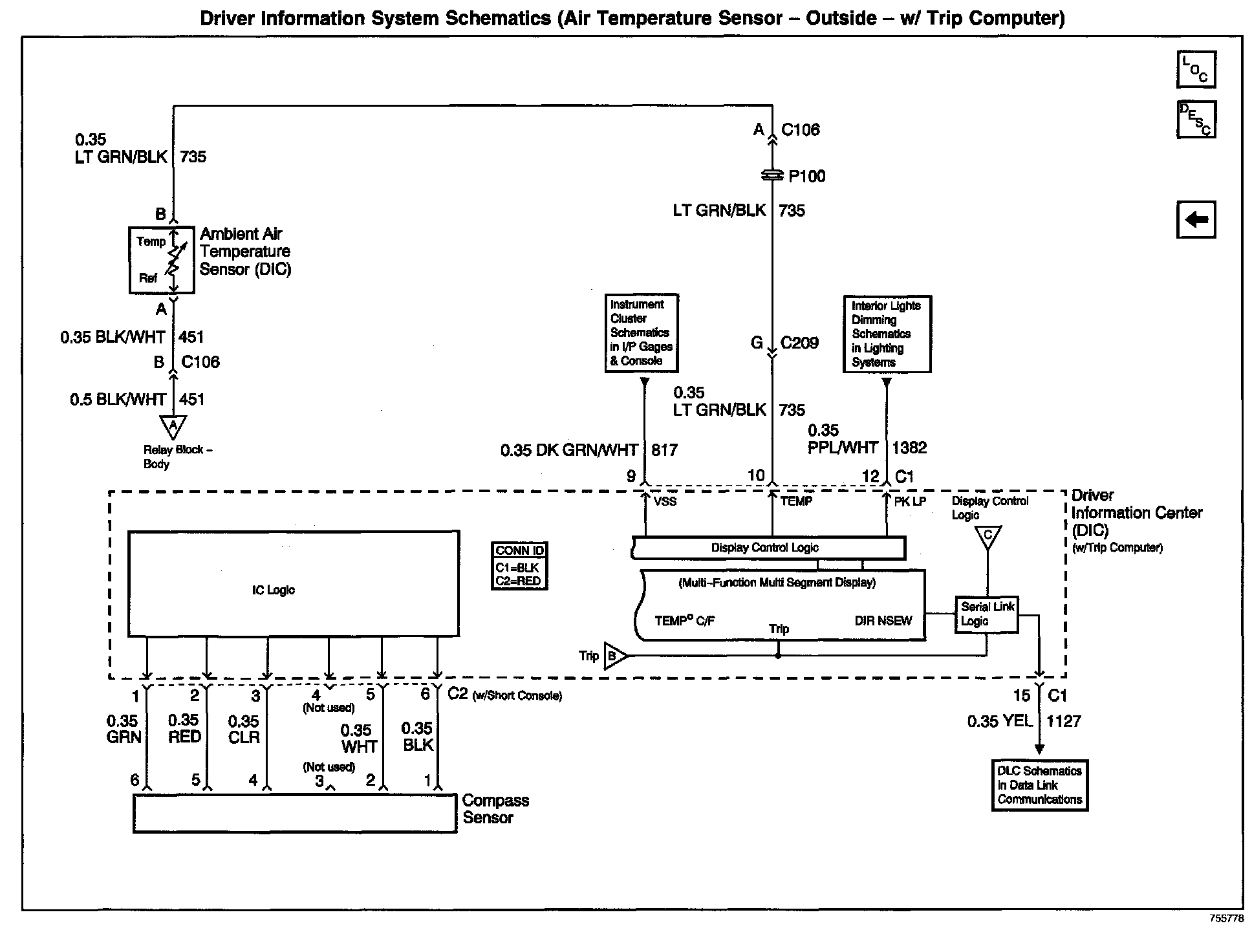

Driver Information System Schematics: Air Temperature Sensor - Outside - W/Trip Computer:
