ECC Module and Temperature Sensors
ECC Module and Temperature Sensors

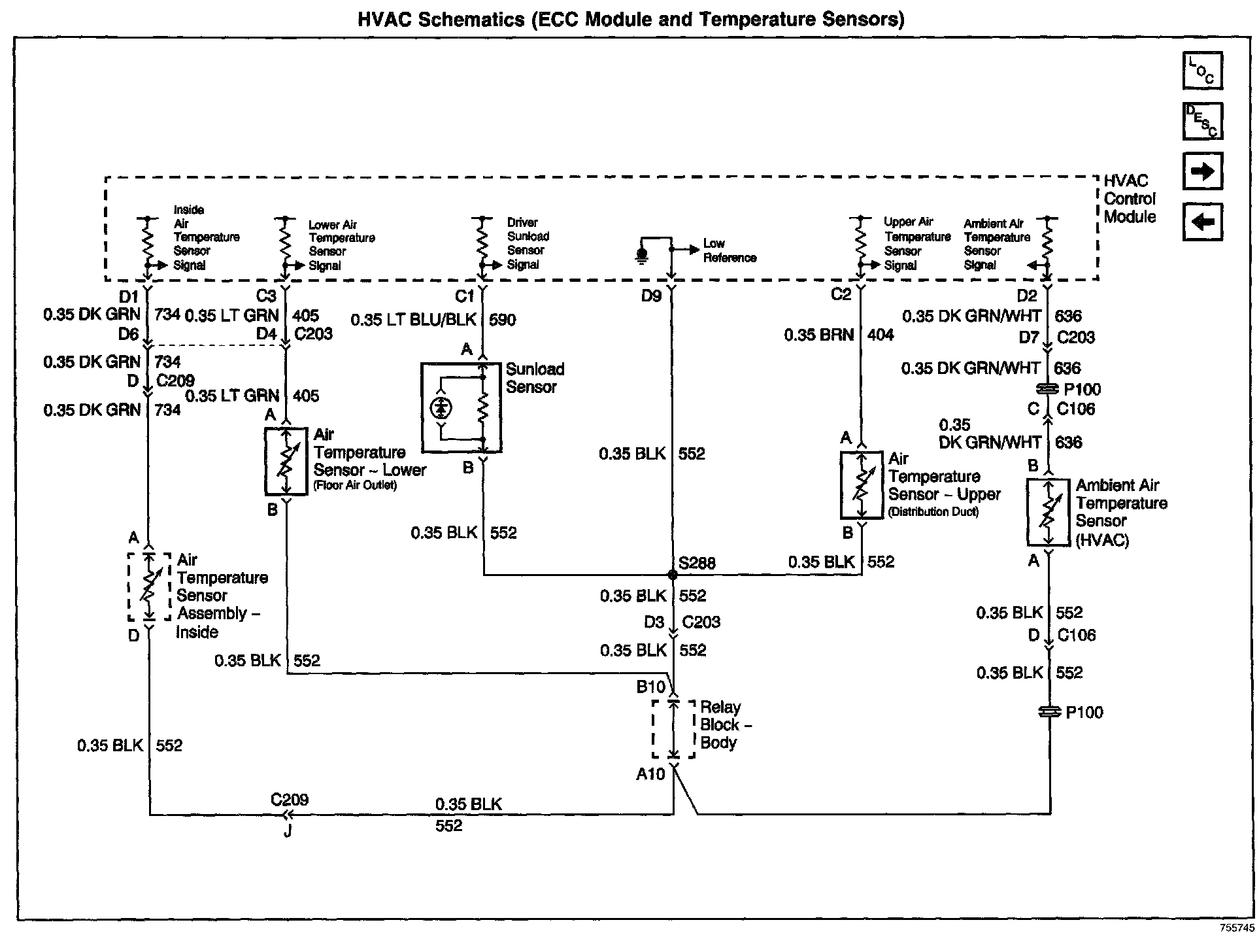

HVAC Schematics: ECC Module And Temperature Sensors:
