Home
>>
Chevy Truck
>>
2002
>>
S10/T10 P/U 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Body Control Systems
>>
Interior Lights References
Interior Lights References

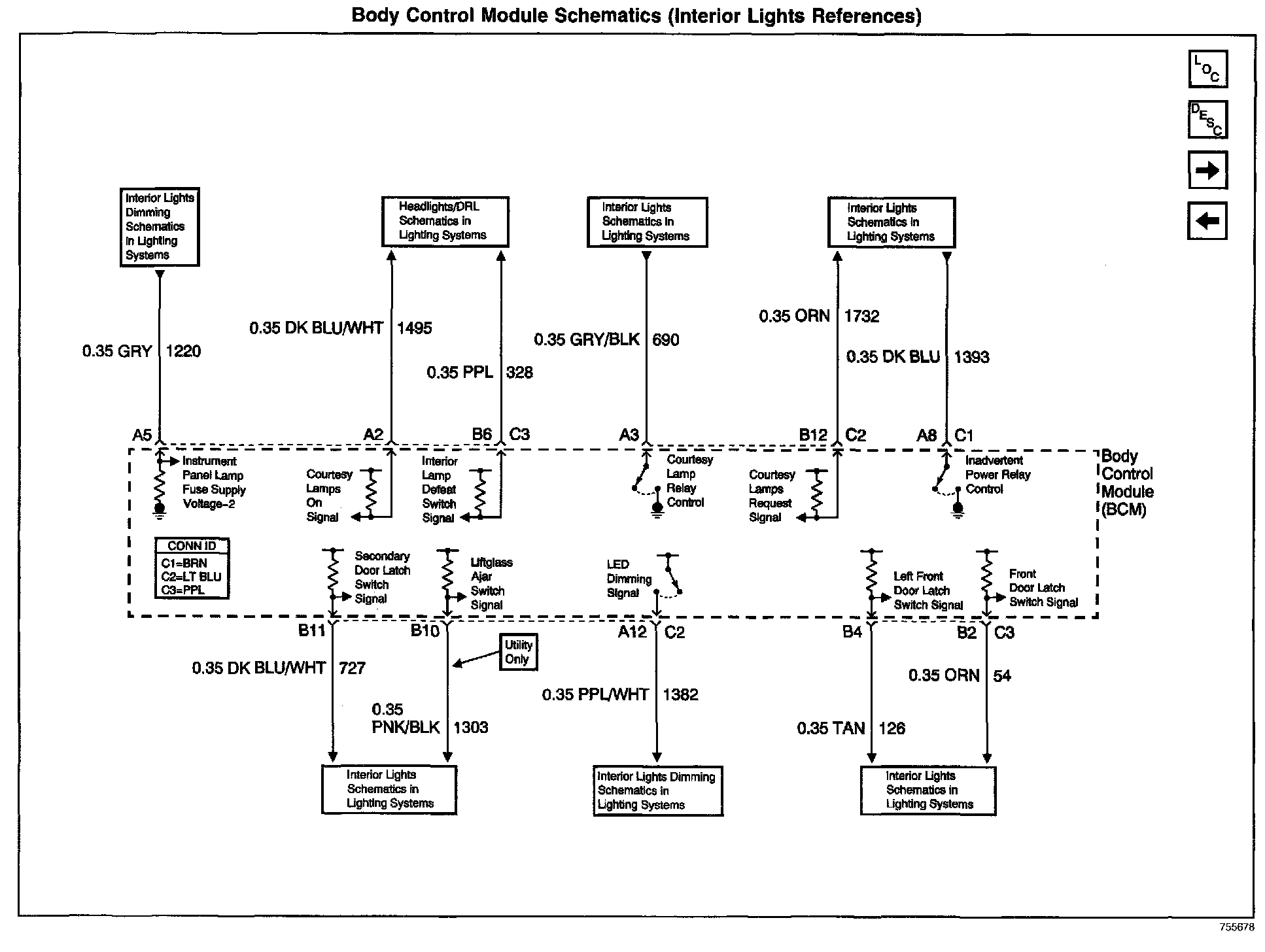

Body Control Module Schematics: Interior Lights References:
