Home
>>
Chevy Truck
>>
2002
>>
S10/T10 P/U 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Turn Signals
>>
Turn Signal Lamp
>>
LR - Export Only
LR - Export Only

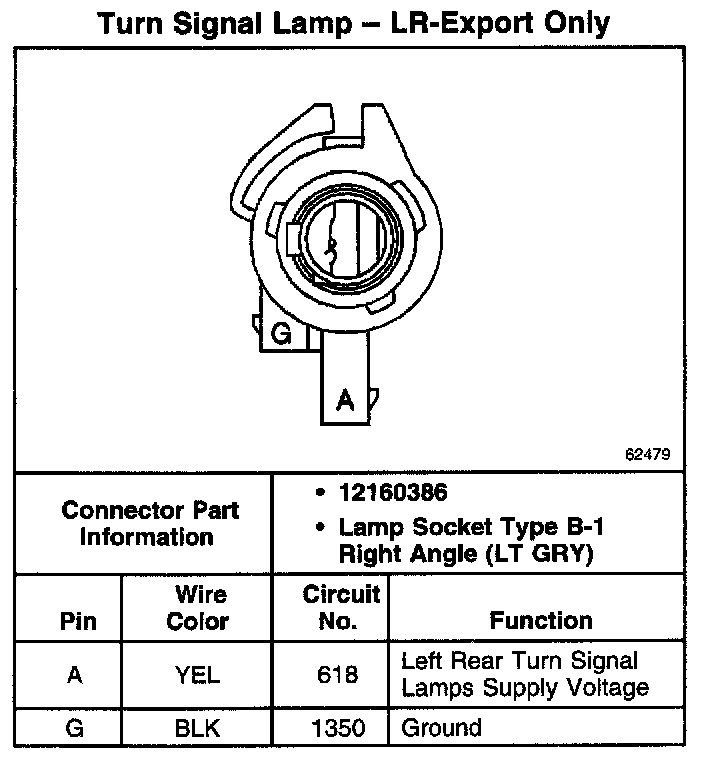

Turn Signal Lamp - LR - Export Only:
