Chevy Truck
>>
2002
>>
S10/T10 P/U 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Motor
>>

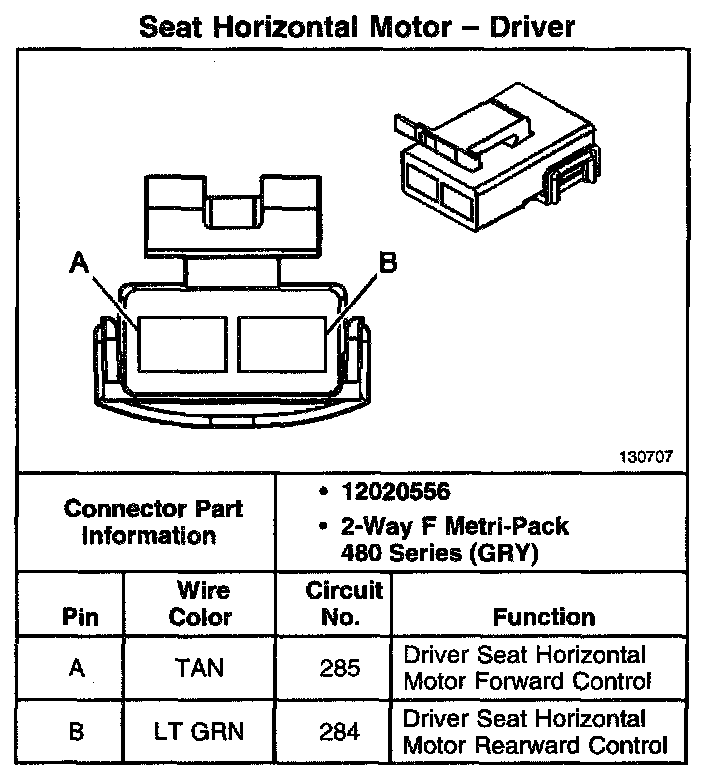

Seat Horizontal Motor - Driver
Seat Horizontal Motor - Driver
Seat Horizontal Motor - Driver:
