S10/T10 P/U 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Motor
>>

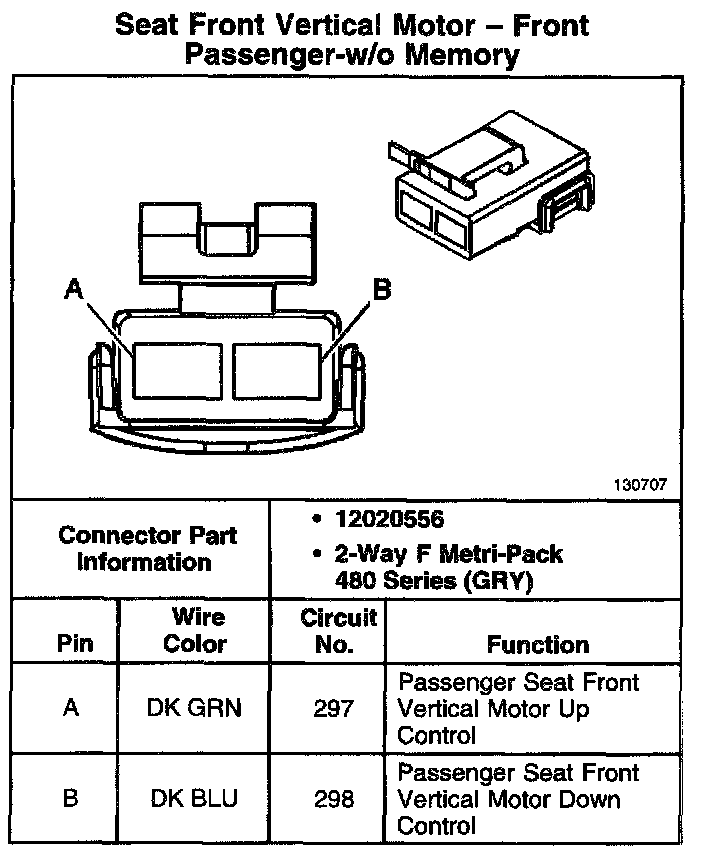

Seat Front Vertical Motor - Front Passenger - W/O Memory
Seat Front Vertical Motor - Front Passenger - W/O Memory
Seat Front Vertical Motor - Front Passenger - W/O Memory:
