Chevy Truck
>>
2002
>>
S10/T10 P/U 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Headlamp Washer Pump
Headlamp Washer Pump

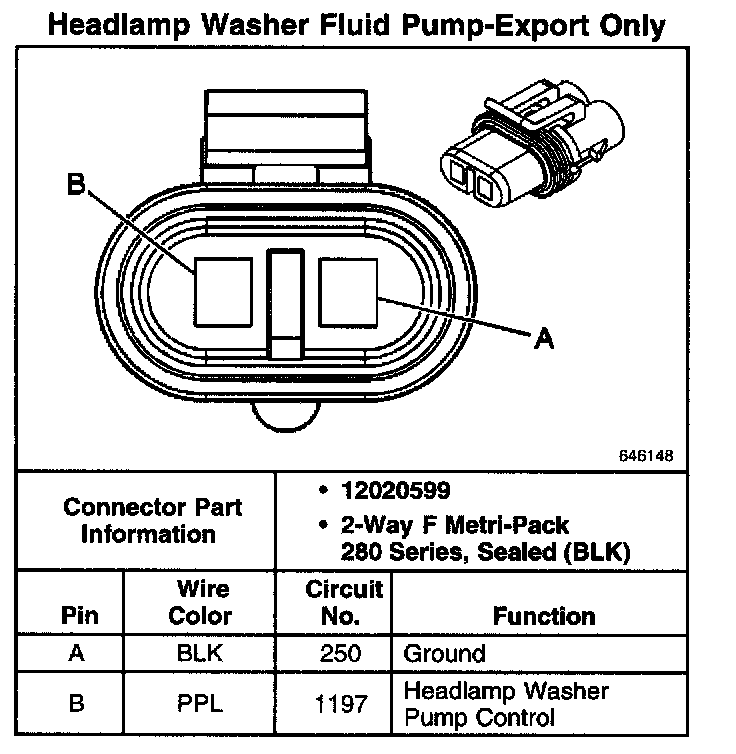

Headlamp Washer Fluid Pump - Export Only:
