Connector Locations

Automatic Transmission Shift Lock Control Connector End Views

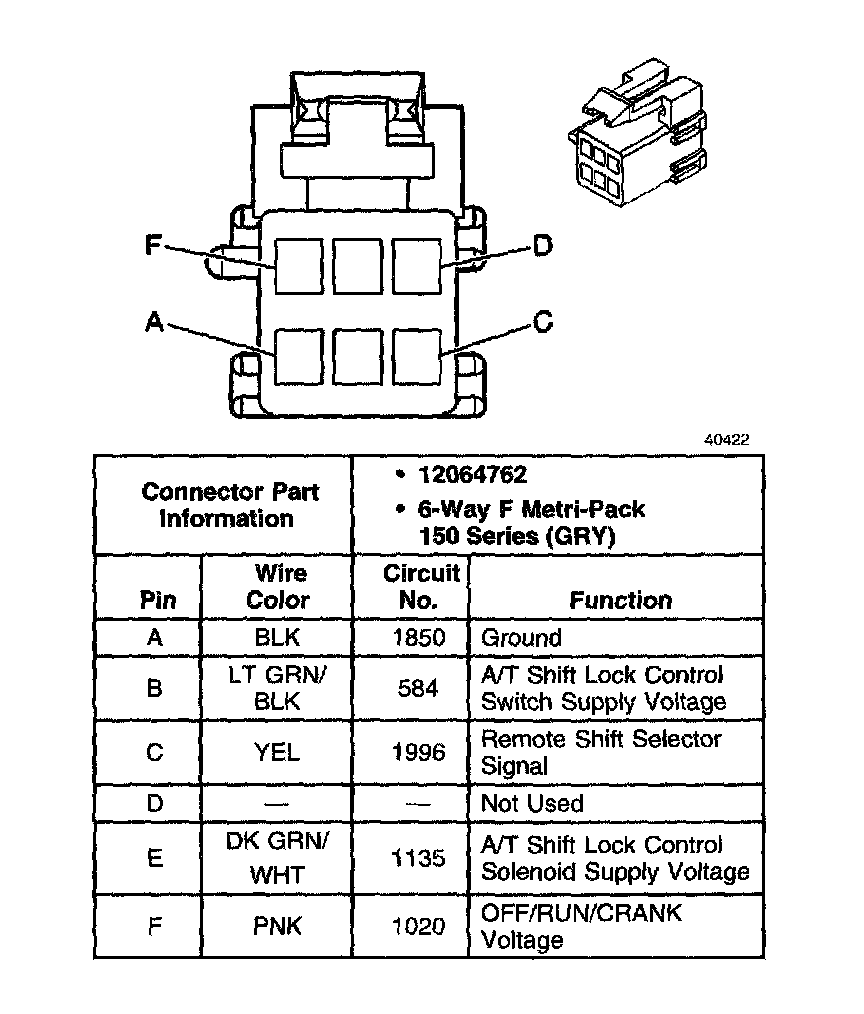

A/T Shift Lock Control Solenoid Assembly (Utility w/Floor Shift)

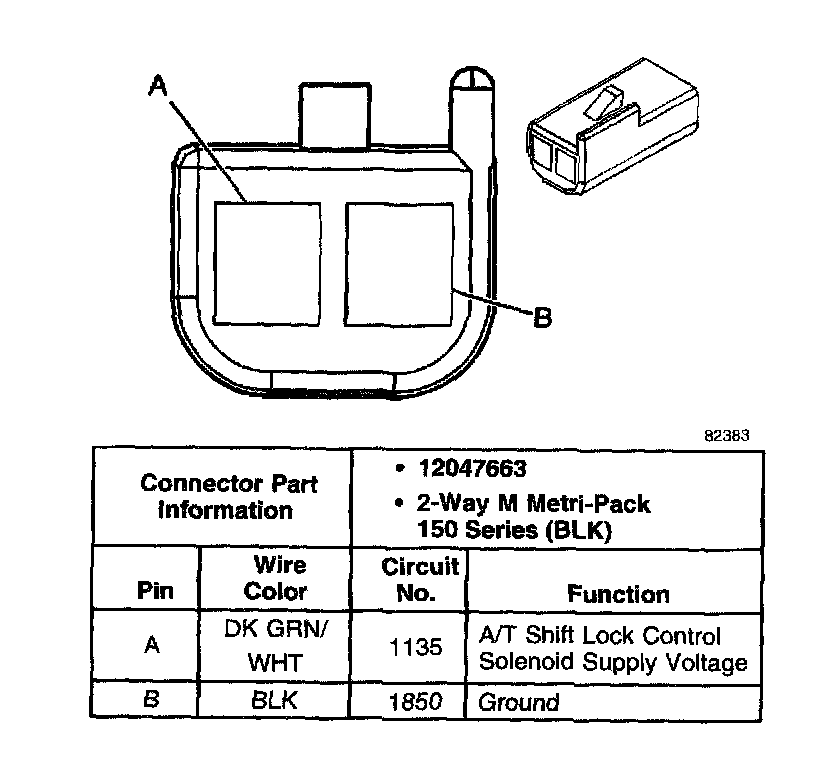

Park Lock Solenoid (w/Floor Shift)

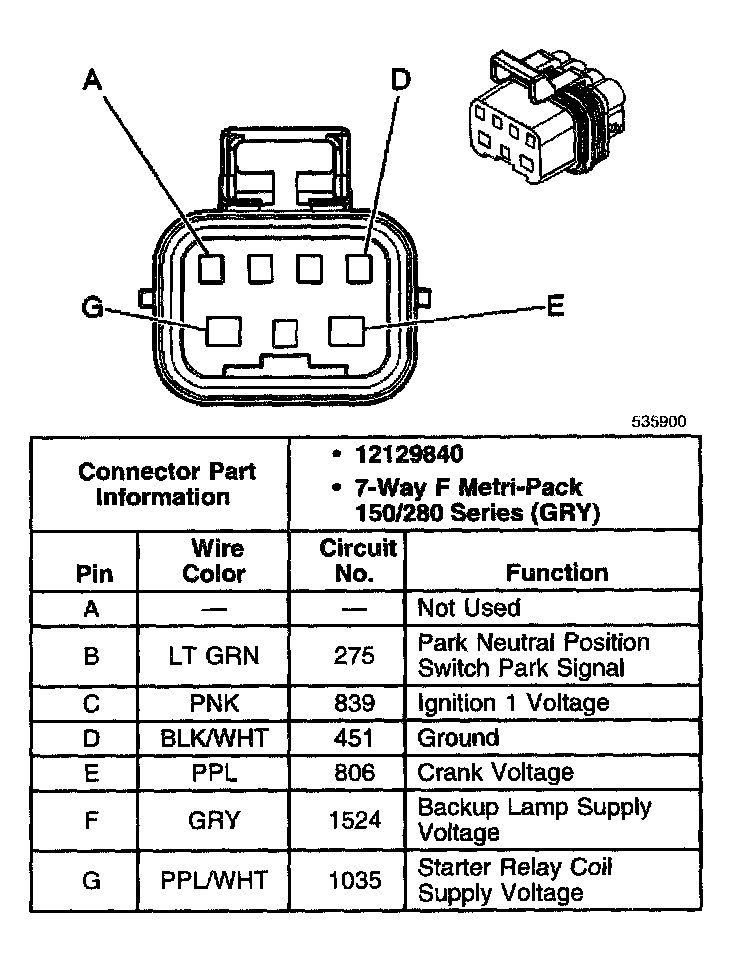

Park/Neutral Position (PNP) Switch Connector C1

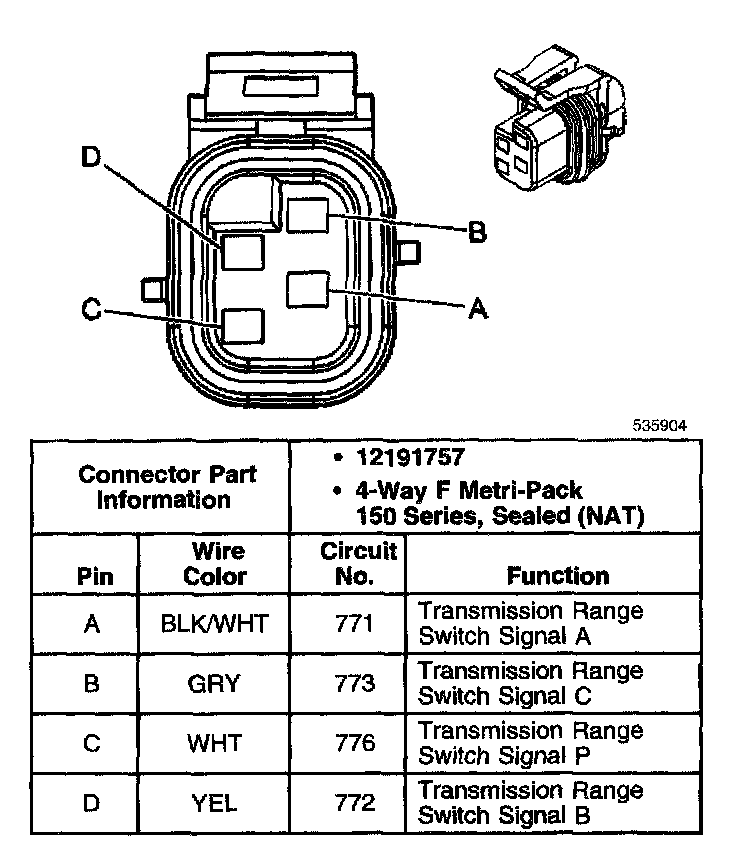

Park/Neutral Position (PNP) Switch Connector C2
