Component Locations
Automatic Transmission Shift Lock Control Component Views

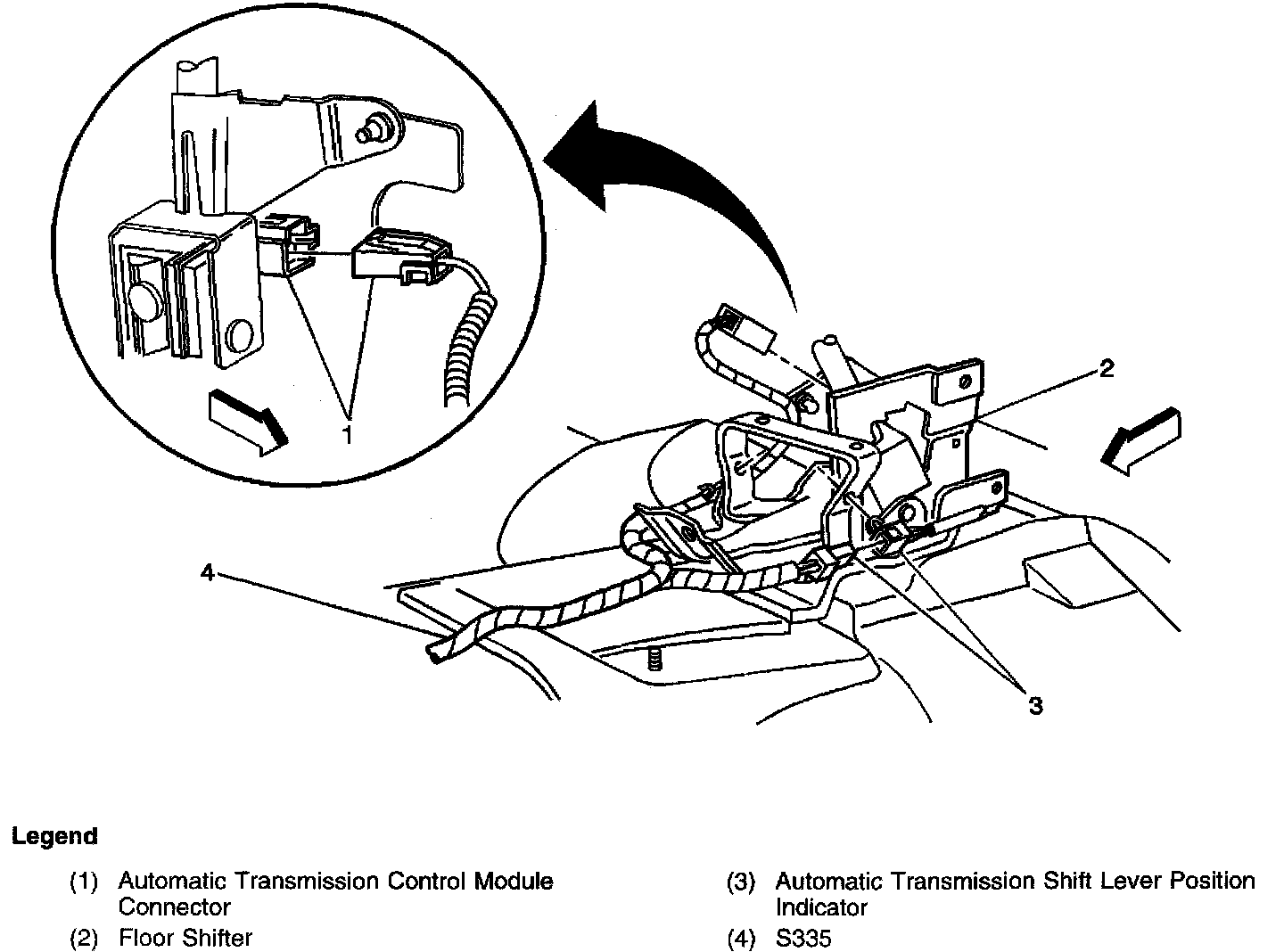

Floor Shifter Harness Connections
Park/Neutral Position (PNP) Switch (w/ A/T) (4.3L Shown, 2.2L Similar)

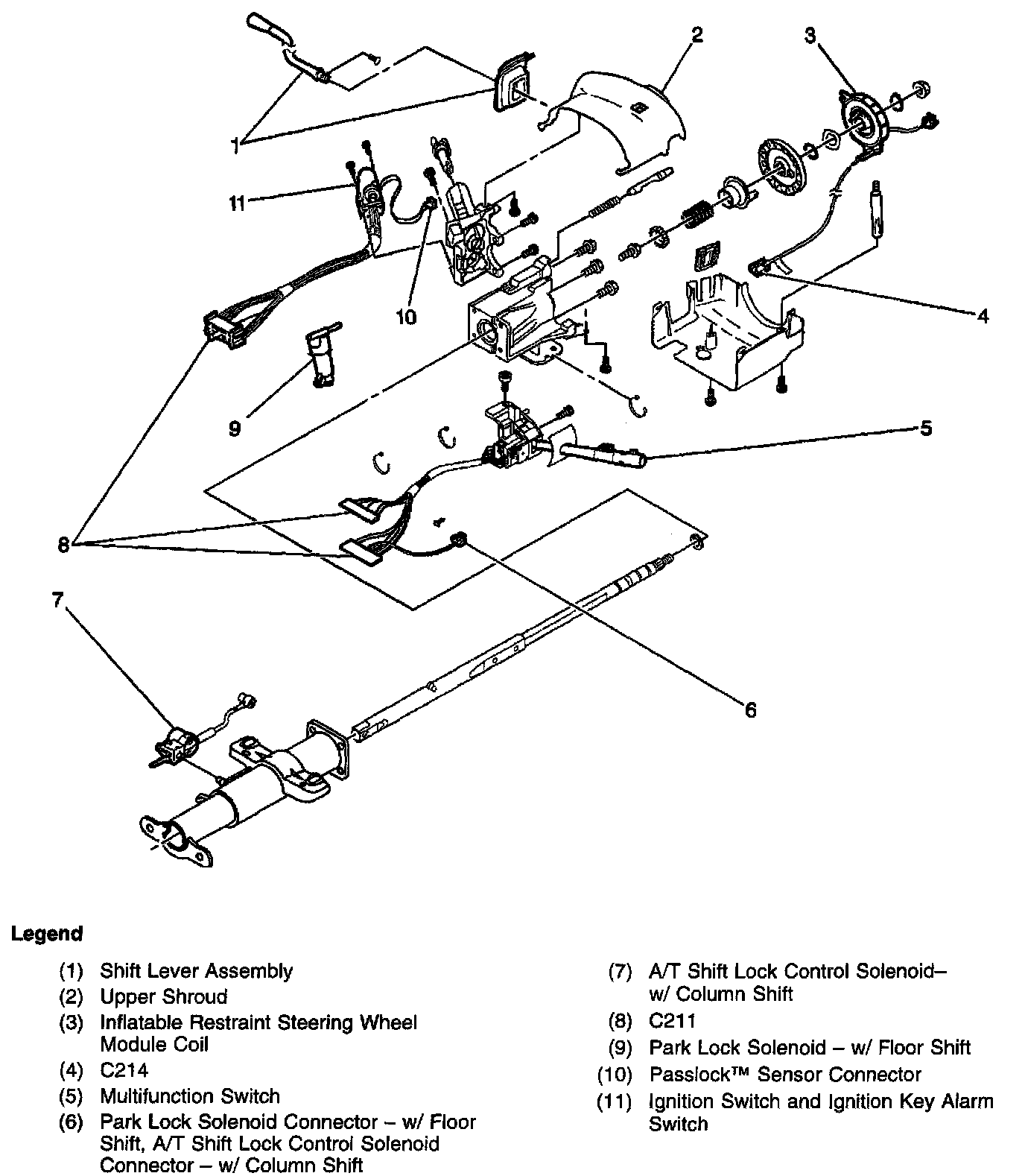

Steering Column Components
