Chevy Truck
>>
2002
>>
S10/T10 Blazer 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Locations
>>
Automatic Control
>>
Engine Harness to A/C Compressor and Diode

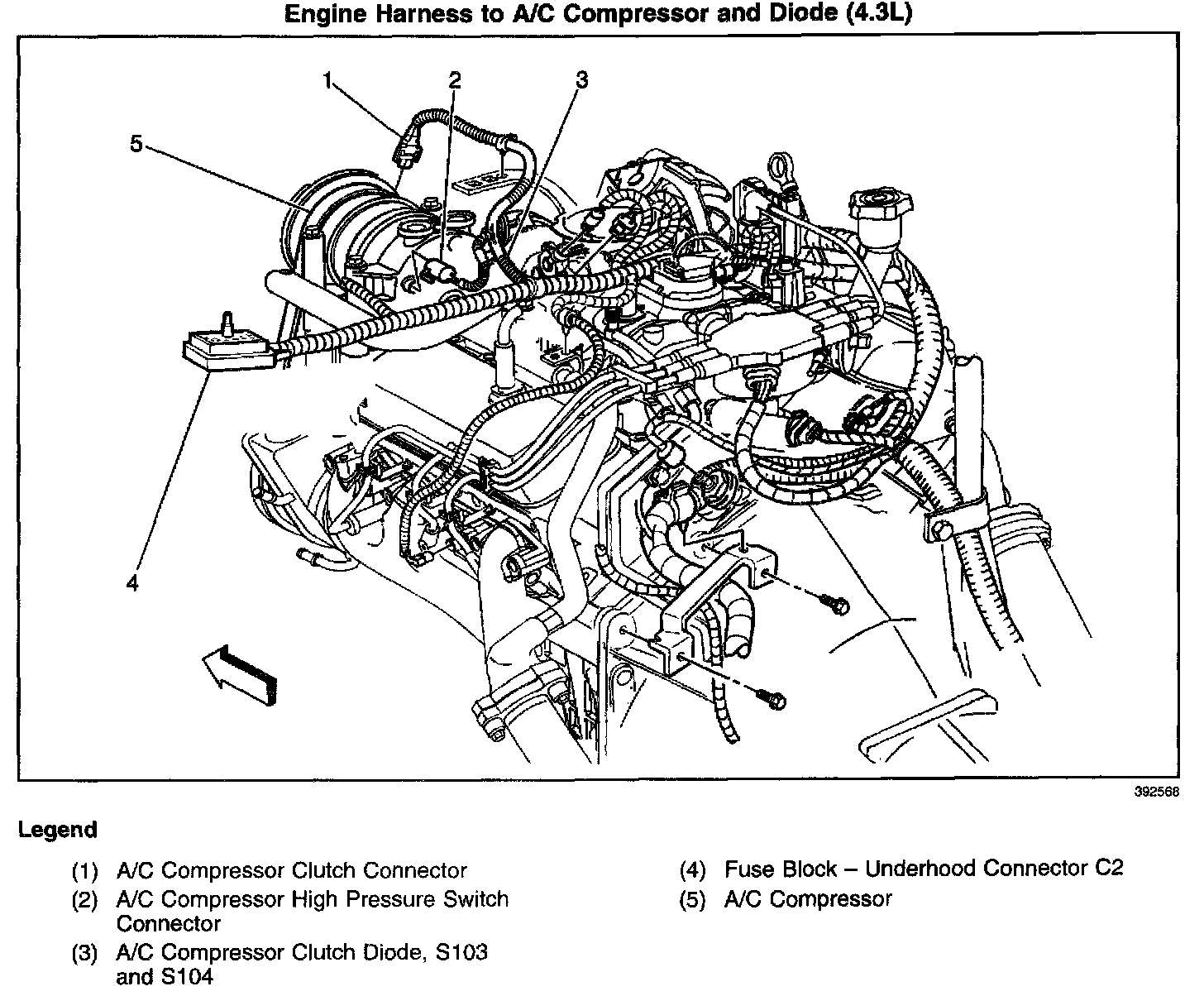

Engine Harness to A/C Compressor and Diode
Locations View:
