Chevy Truck
>>
2002
>>
S10/T10 Blazer 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Backup Lamp
>>
Backup Lamp Switch
Backup Lamp Switch

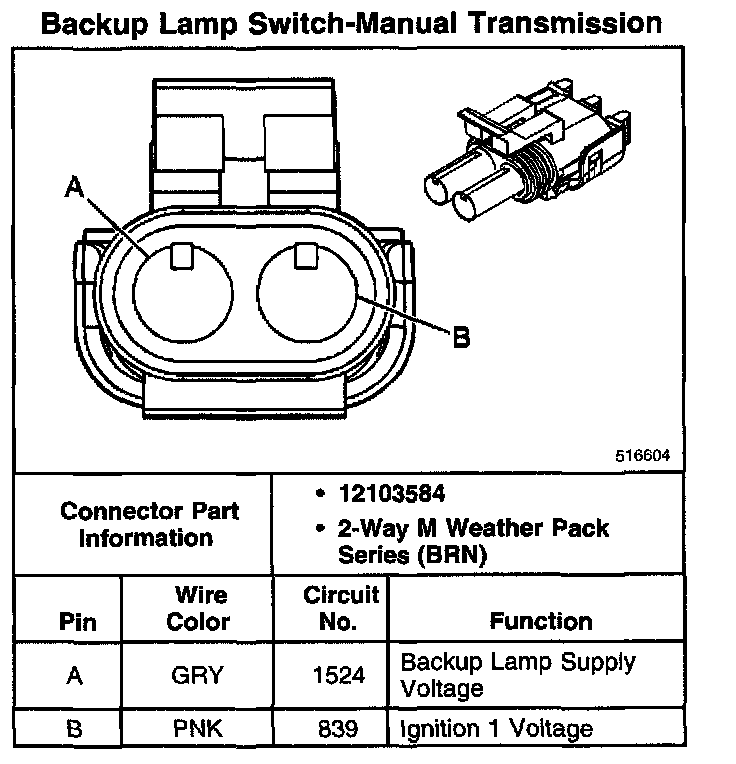

Backup Lamp Switch - Manual Transmission:
