Chevy Truck
>>
2002
>>
K 3500 Truck 4WD V8-6.0L VIN U
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>

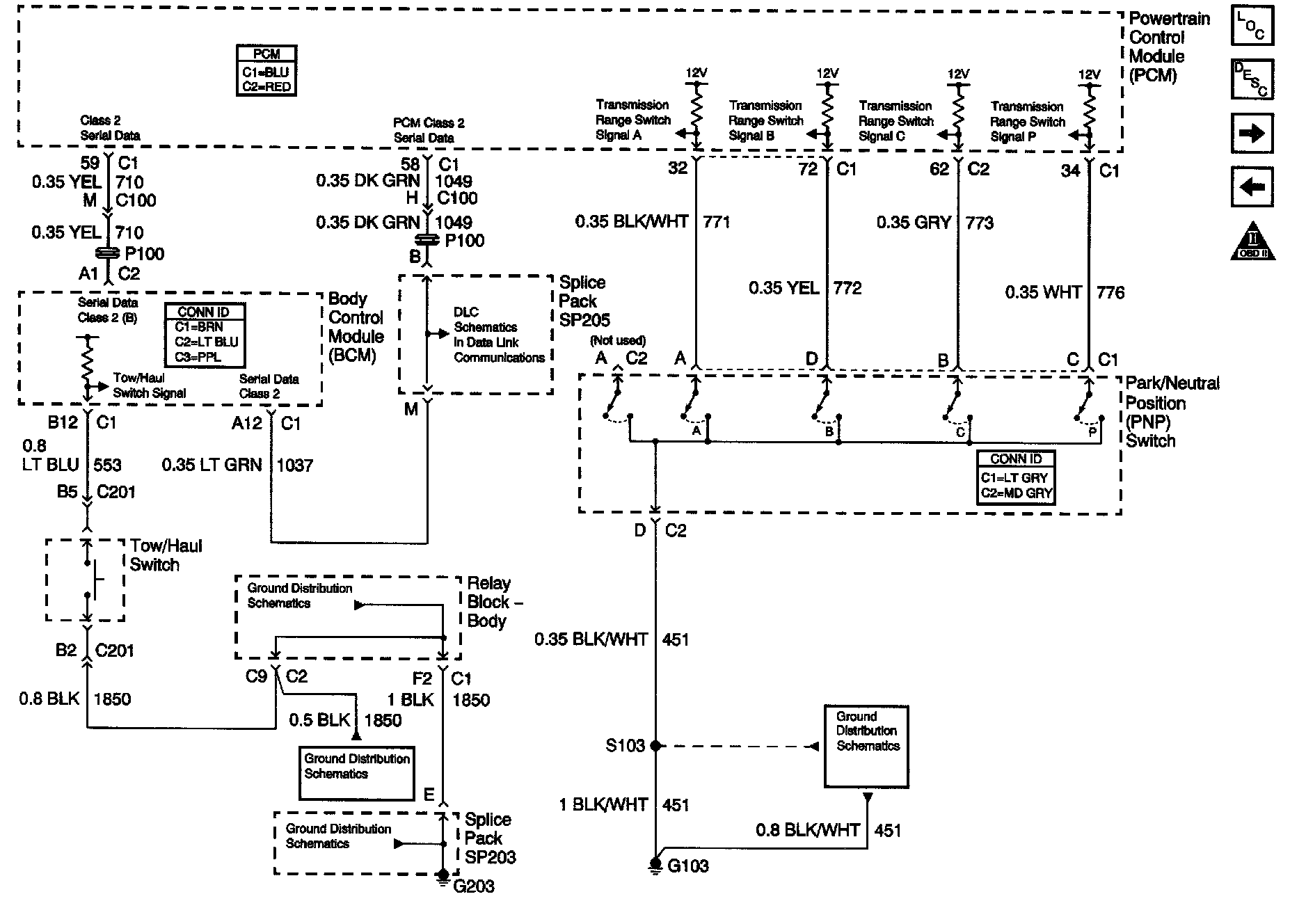

Tow/Haul and PNP Switch Inputs
Tow/Haul and PNP Switch Inputs
