EGR Control Solenoid: Service and Repair

REMOVAL PROCEDURE




1. Disconnect the negative battery cable.

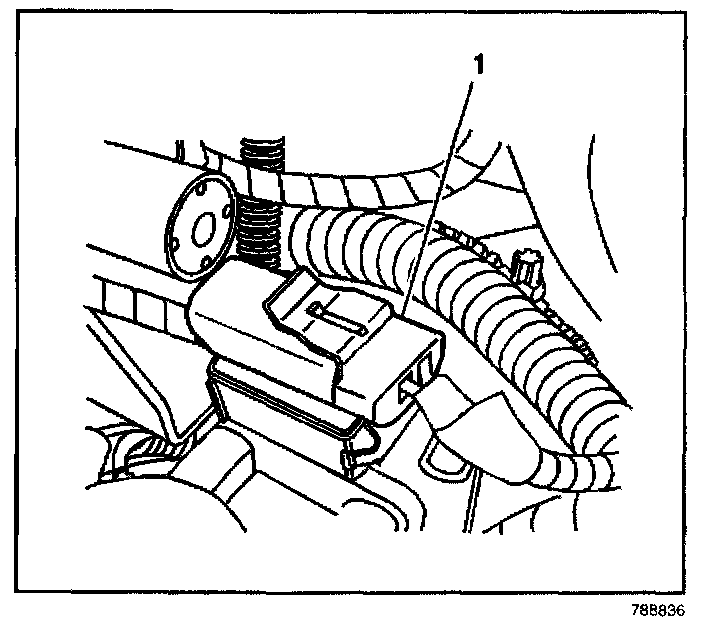

2. Disconnect the exhaust gas recirculation (EGR) valve solenoid (1).

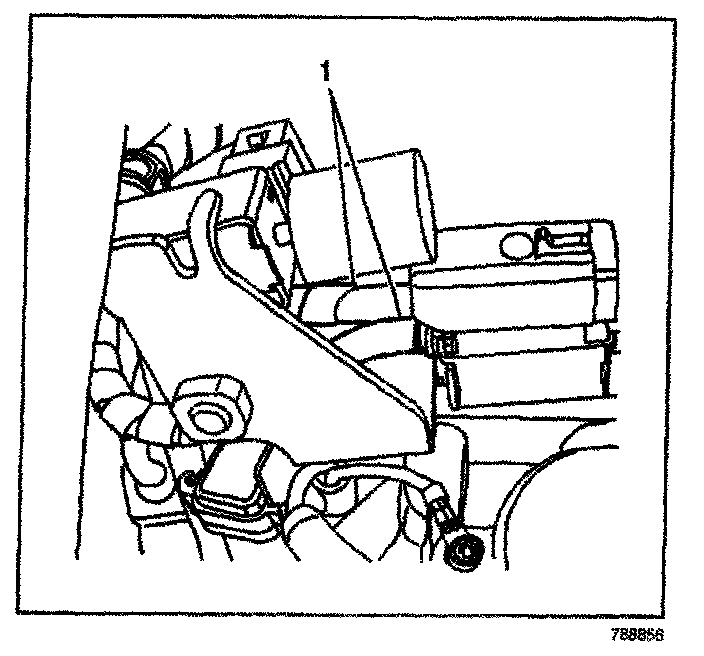

3. Disconnect the EGR valve solenoid vacuum lines (1).

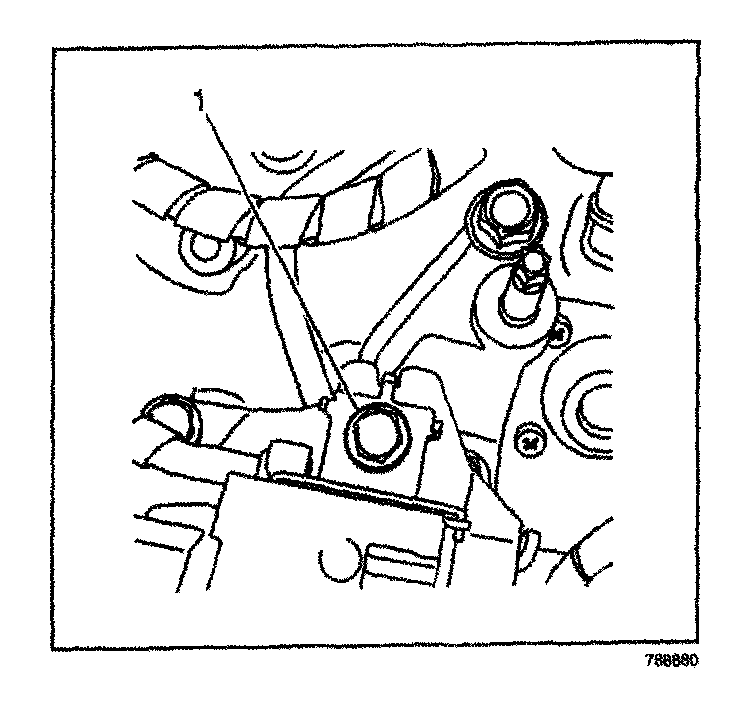

4. Remove the EGR valve solenoid bolt (1) and the solenoid.

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.

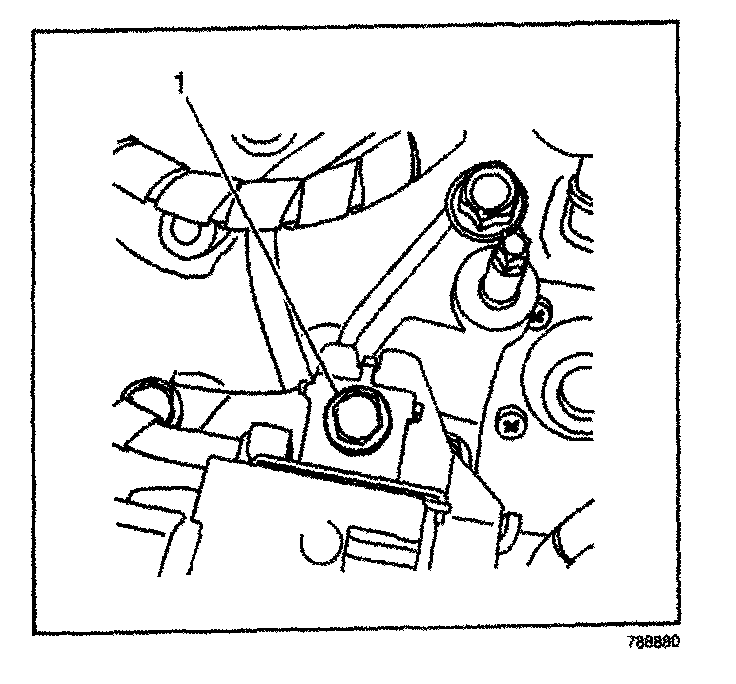

1. Install the EGR valve solenoid and the bolt (1).

Tighten
Tighten bolt to 10 N.m (89 lb in).

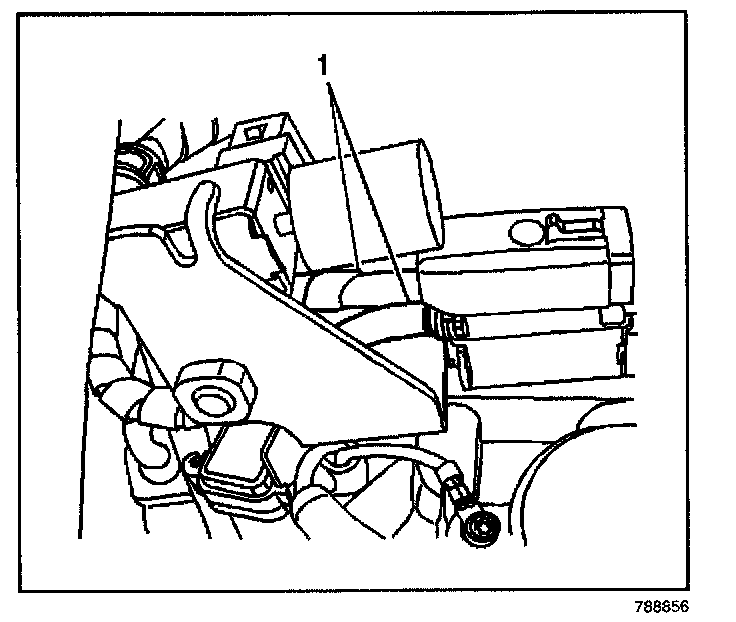

2. Connect the EGR valve solenoid vacuum lines (1).




3. Connect the EGR valve electrical connector (1).
4. Connect the negative battery cable.
