Chevy Truck
>>
2002
>>
K 2500 Truck 4WD V8-6.6L DSL Turbo VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Speed Sensor, Transfer Case
>>

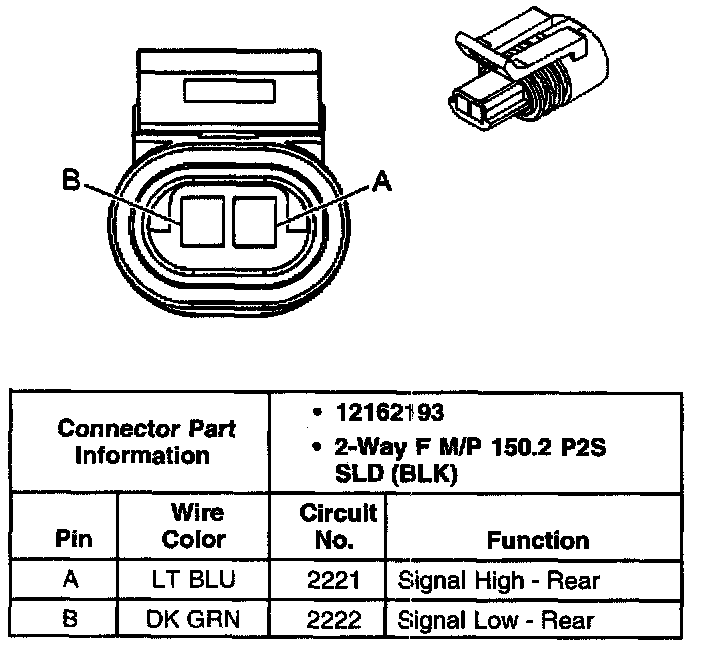

Propshaft Speed Sensor - Rear (NVG 236/246-NP8)
Propshaft Speed Sensor - Rear (NVG 236/246-NP8)
