Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2002
>>
K 2500 Truck 4WD V8-6.6L DSL Turbo VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuel Pressure Sensor/Switch
Fuel Pressure Sensor/Switch

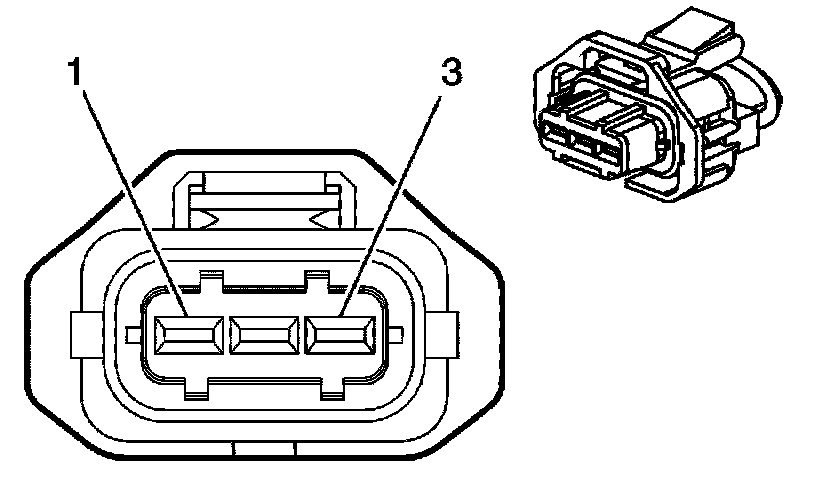

Fuel Rail Pressure (FRP) Sensor
