Home >> Chevy Truck >> 2002 >> K 1500 Truck 4WD V8-4.8L VIN V >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Relays and Modules - Transmission and Drivetrain >> Relays and Modules - Transfer Case >> Control Module >> Locations >> NVG 261-NP2

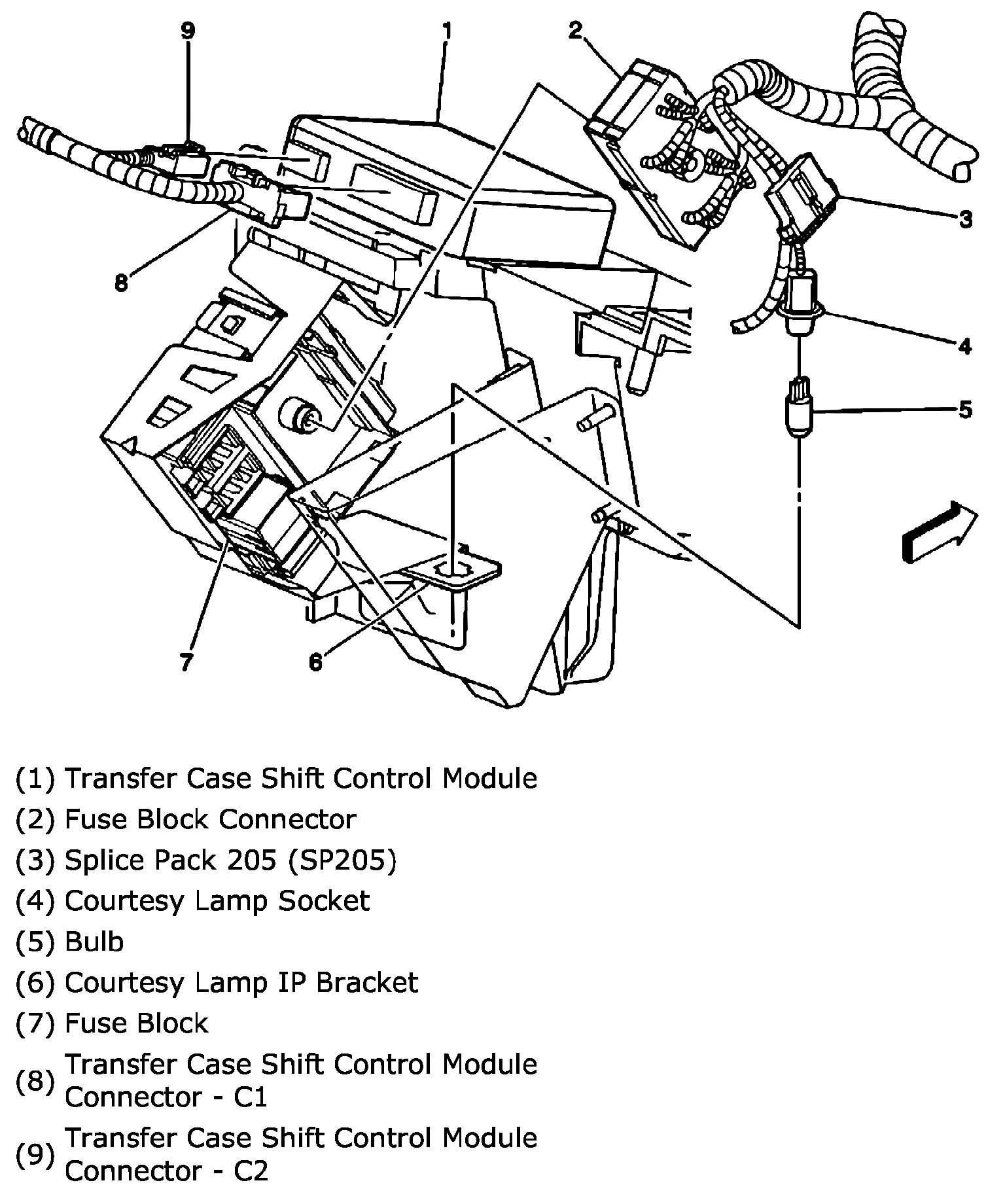

NVG 261-NP2










Note: To the left of the instrument cluster behind the headlamp switch.
