Flex Plate: Service and Repair

Engine Flywheel Replacement

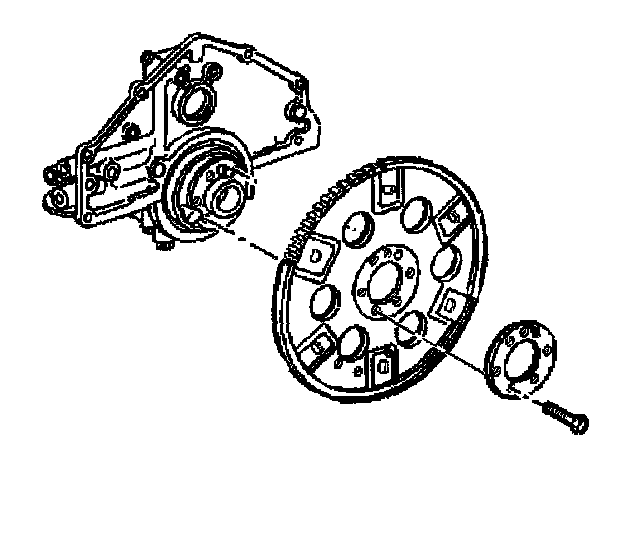

Removal Procedure





1. Remove the starter from the vehicle.
2. Remove the transmission from the vehicle.
3. Remove the flywheel from the crankshaft.

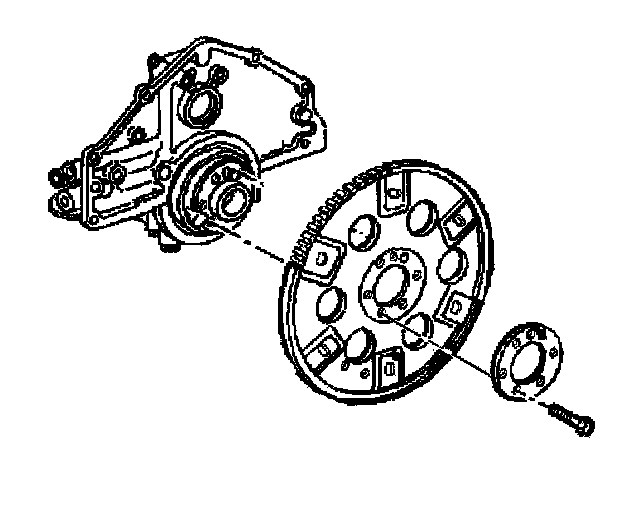

Installation Procedure





1. Install the flywheel to the crankshaft.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the flywheel bolts to the crankshaft.
^ Tighten the bolts to 90 Nm (65 ft. lbs.).
3. Install the transmission to the vehicle.
4. Install the starter to the engine block.
