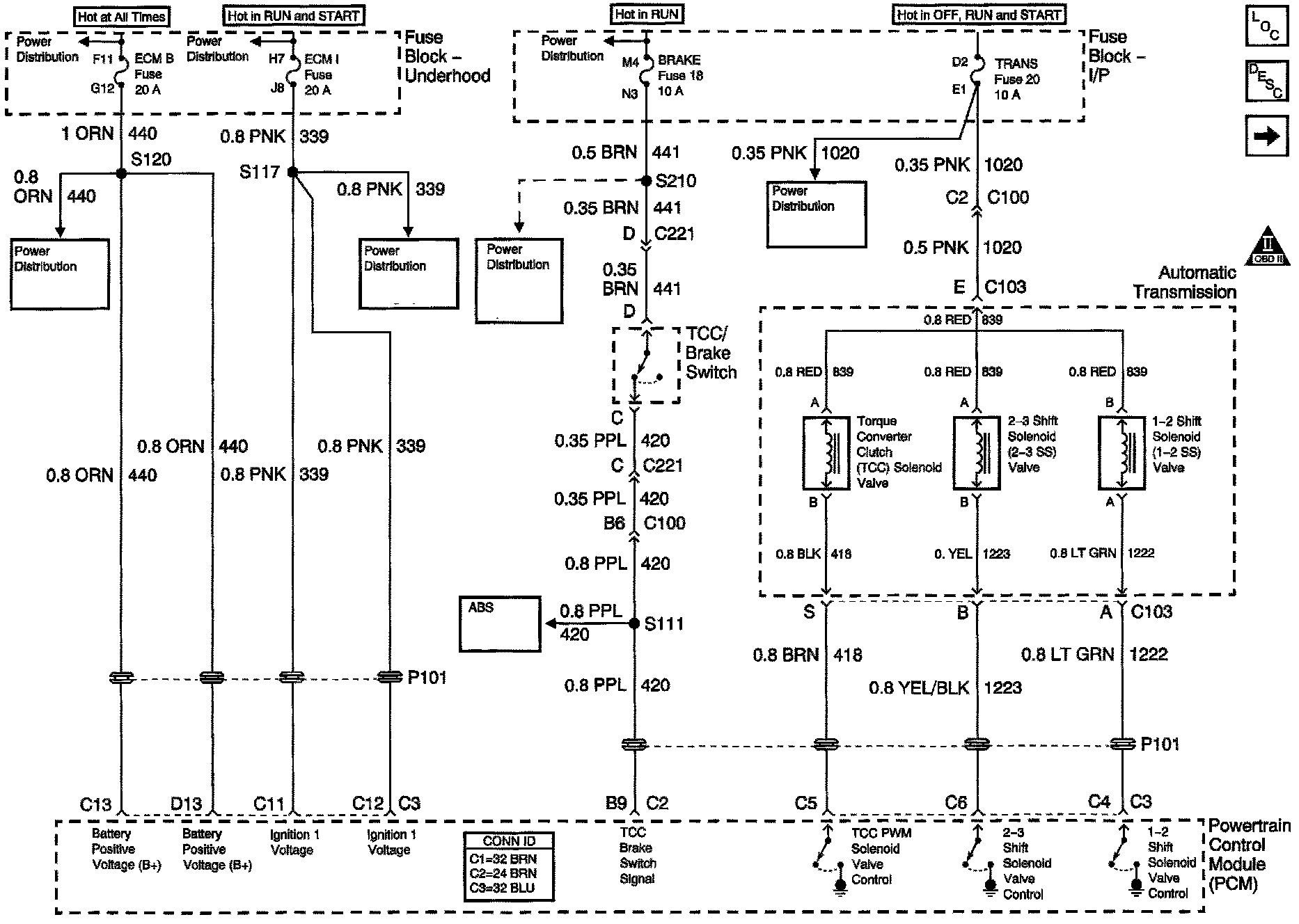

4L80-E/4L85-E Automatic Transmission
>>
(PWR, Solenoids and TCC/Brake Switch Controls)
(PWR, Solenoids and TCC/Brake Switch Controls)
