A/C Fuses; ECM-B, IGN-E, Compressor Clutch, G101, G103
A/C Fuses; ECM-B, IGN-E, Compressor Clutch, G101, G103

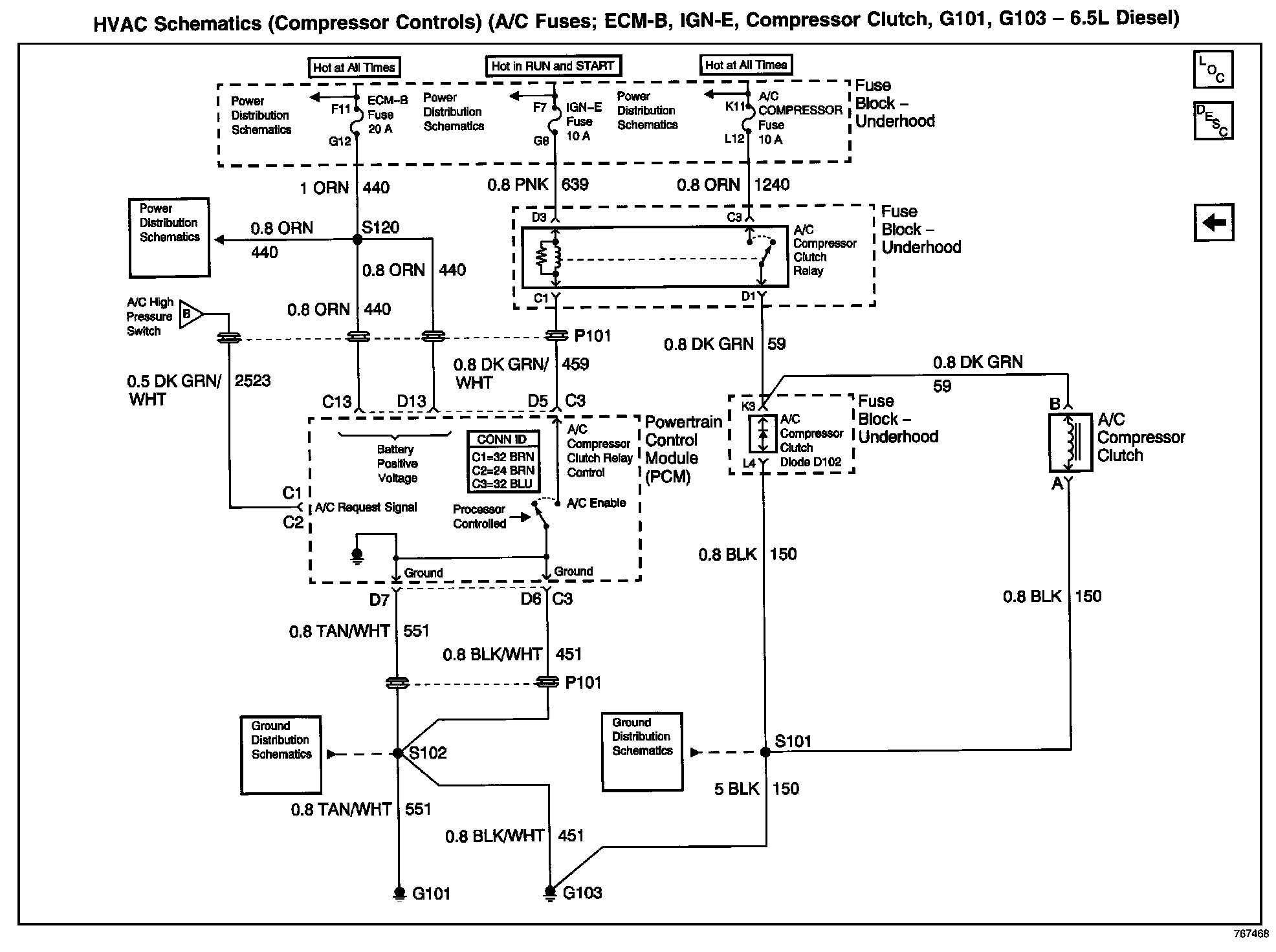

HVAC Schematics: Compressor Controls (A/C Fuses; ECM-B, IGN-E, Compressor Clutch, G101, G103 - 6.5L Diesel):
