Chevy Truck
>>
2002
>>
Express 3/4 Ton Van V8-6.5L DSL Turbo VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Diesel MFI Pump
>>
Fuel Solenoid Driver
Fuel Solenoid Driver

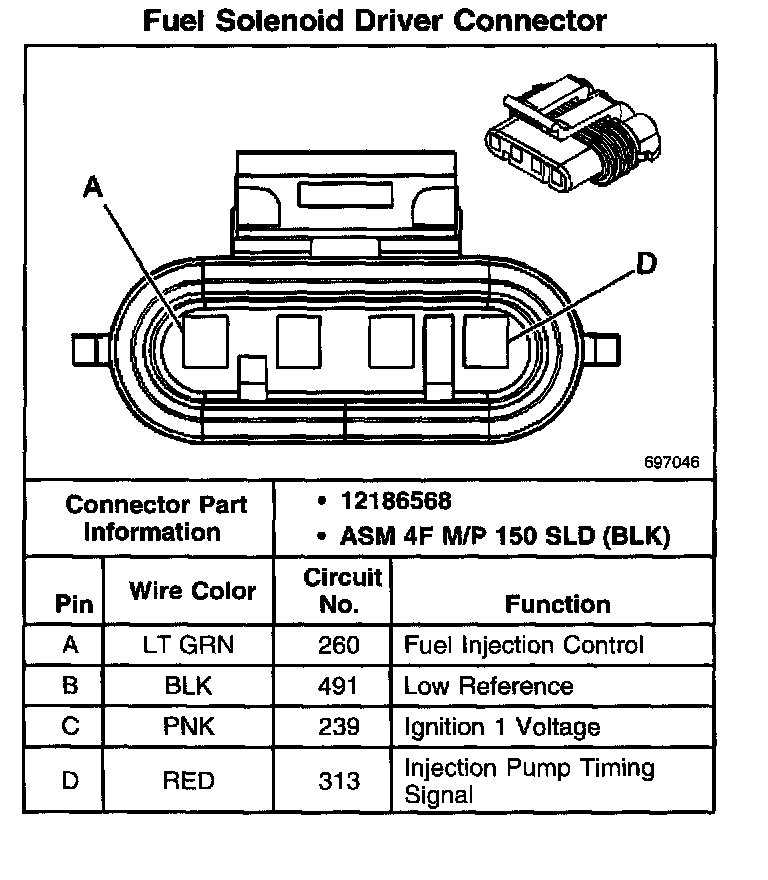

Fuel Solenoid Driver Connector:
