Home
>>
Chevy Truck
>>
2002
>>
Express 3/4 Ton Van V8-6.5L DSL Turbo VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C200-C225
>>
C200
C200

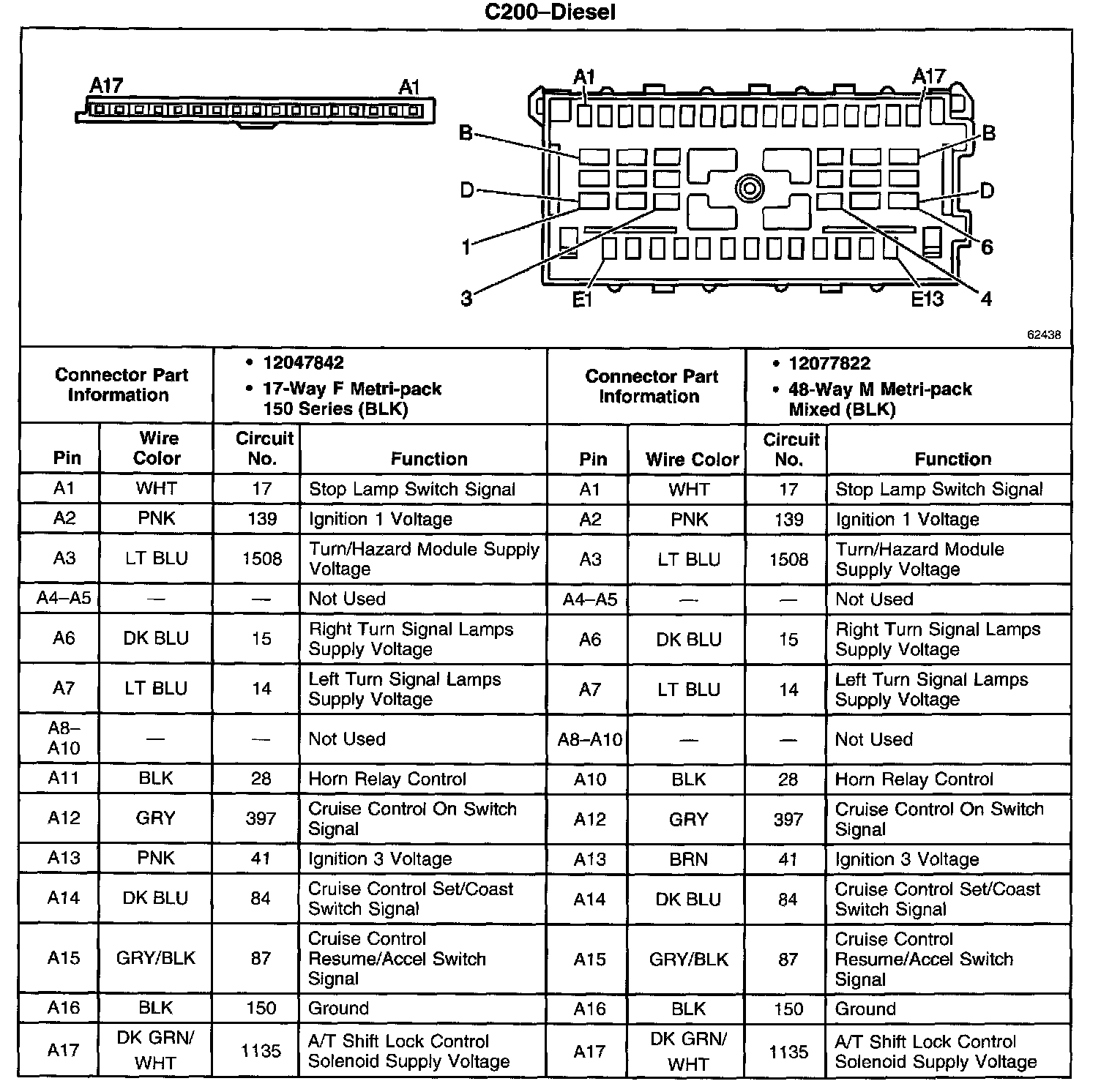

C200 - Diesel:

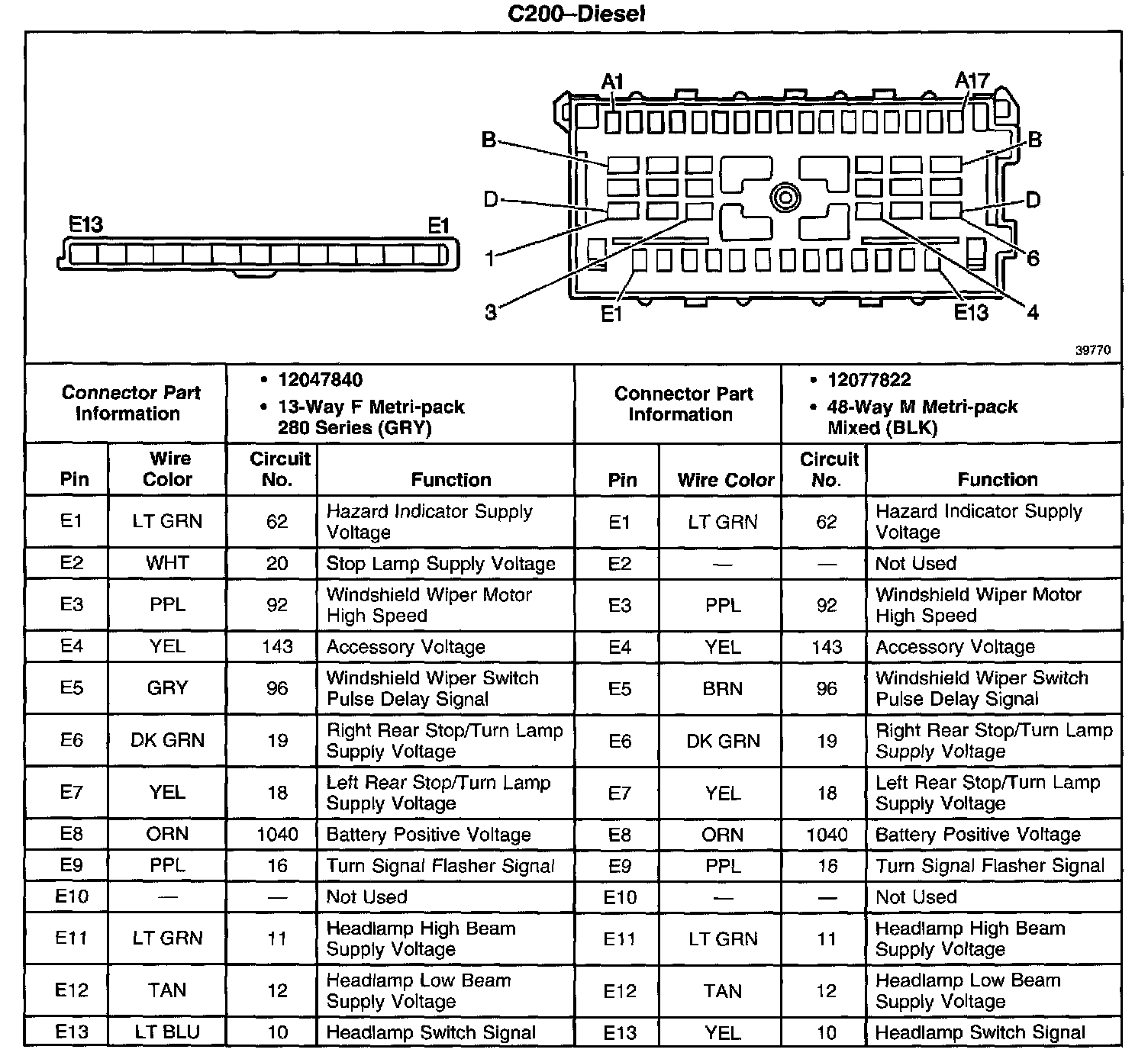

C200 - Diesel:

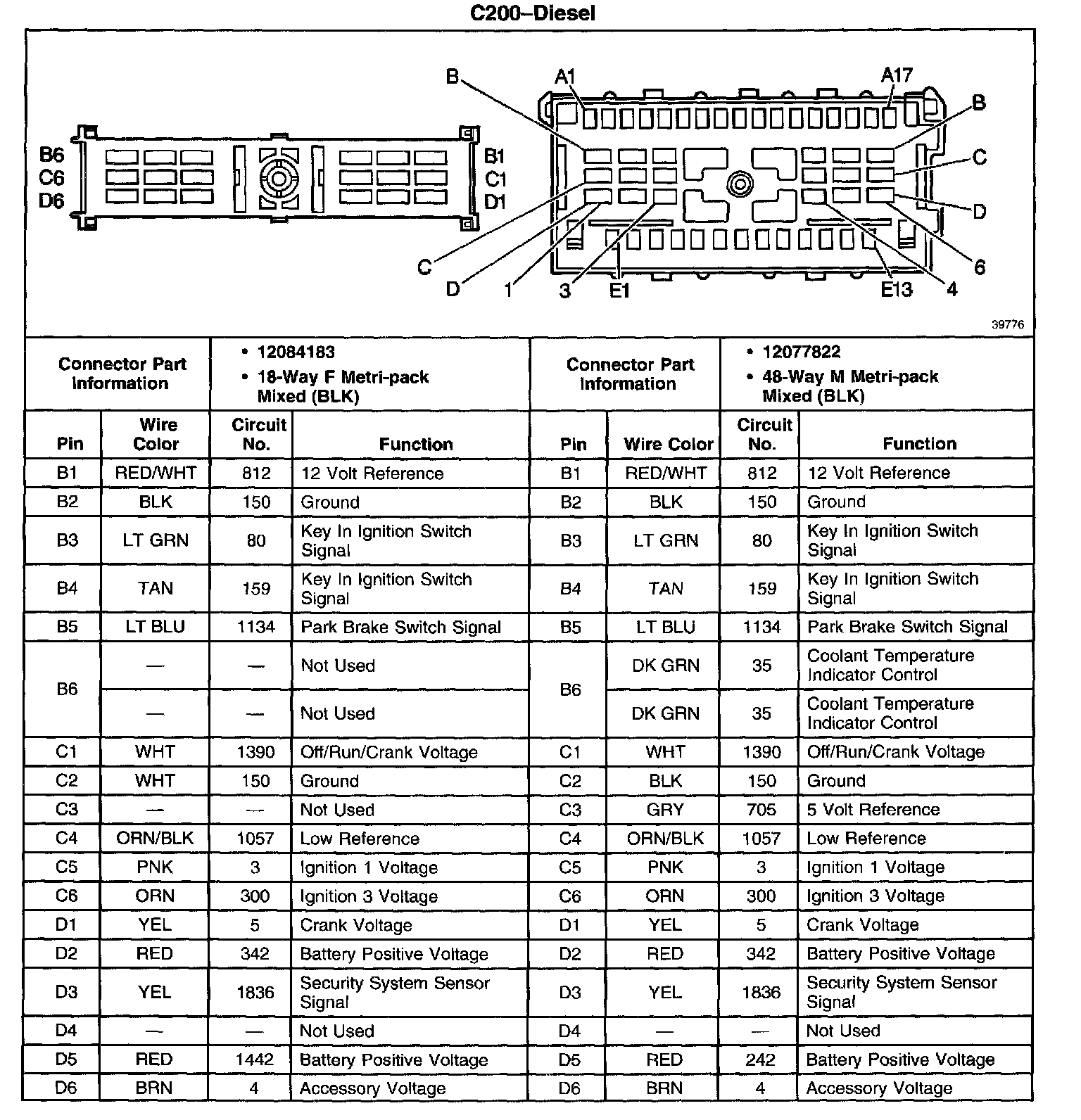

C200 - Diesel:
