Canister Purge Control Valve: Service and Repair
EVAPORATIVE EMISSION (EVAP) CANISTER PURGE VALVEREMOVAL PROCEDURE
1. Remove the engine cover.

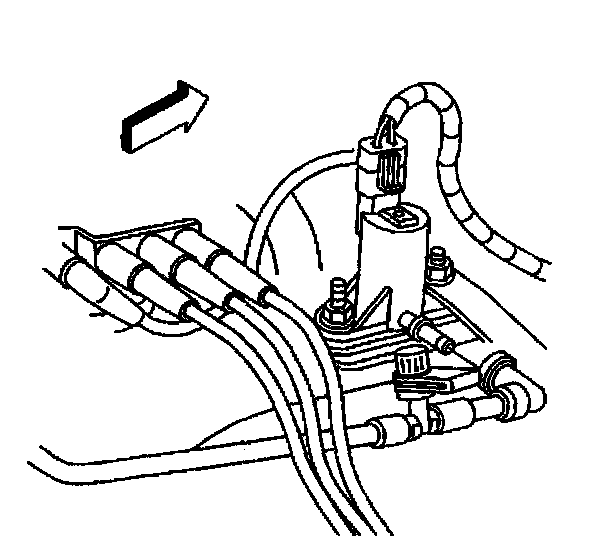

2. Disconnect the evaporative emission (EVAP) purge pipe.

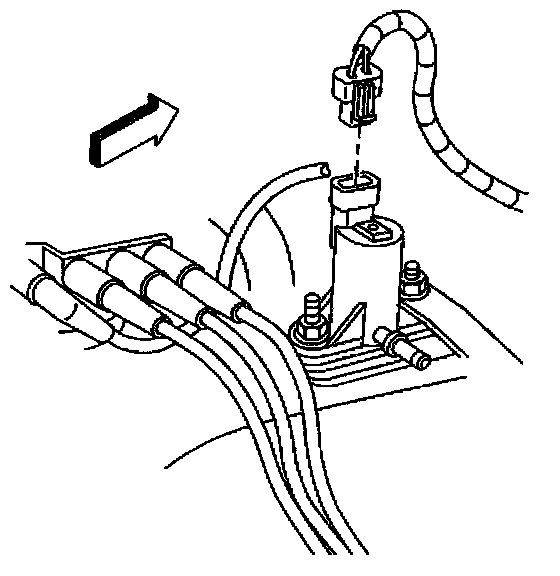

3. Disconnect the purge valve electrical connector.
4. Remove the purge valve mounting nuts.
5. Remove the engine wiring harness bracket from the mounting stud.
EVAP Purge Valve:
6. Remove the purge valve from the intake manifold.
INSTALLATION PROCEDURE
EVAP Purge Valve:
1. Install the purge valve to the intake manifold.
2. Install the engine wiring harness bracket to the mounting stud.
NOTE: Refer to Fastener Notice in Service Precautions.

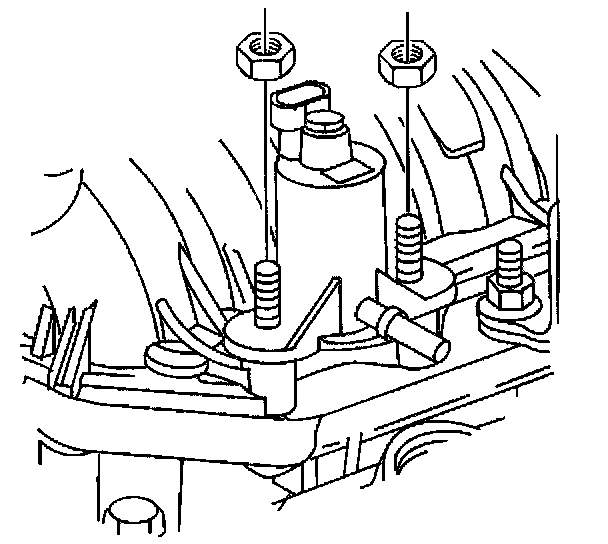

3. Install the purge valve mounting nuts.
Tighten
Tighten the nuts to 12 N.m (106 lb in).

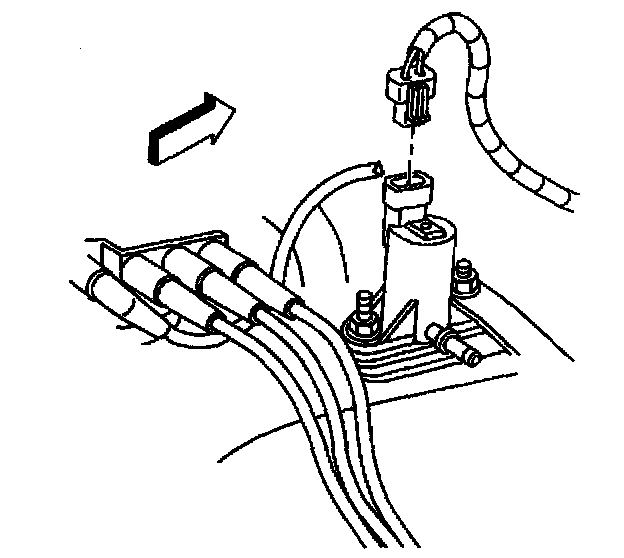

4. Connect the purge valve electrical connector.

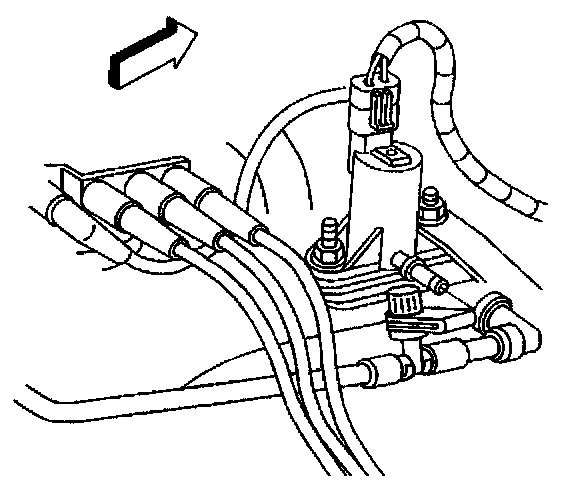

5. Connect the EVAP purge pipe.
6. Install the engine cover.
