Oxygen Sensor
>>
Bank 2 Sensor 1
>>
Bank 2 Sensor 1 (4L60-E)
Bank 2 Sensor 1 (4L60-E)

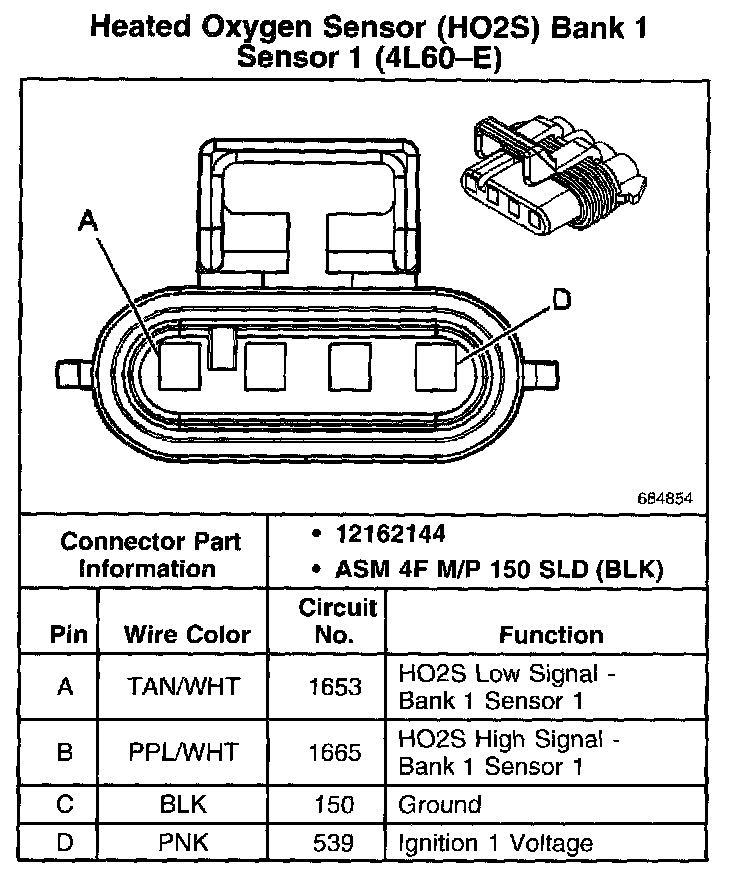

Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1 (4L60-E):
