Chevy Truck
>>
2002
>>
Express 1/2 Ton Van V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Brake Lamp
>>
Diagrams
>>
Connector Views
Connector Views

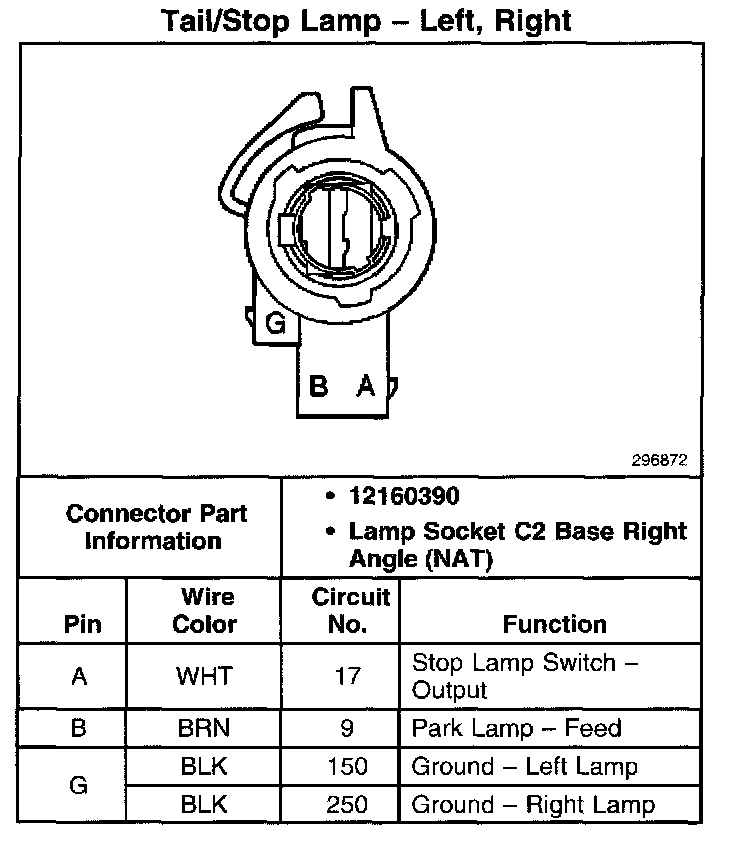

Tail/Stop Lamp - Left, Right:
