Power Door Lock Relay, VIM - Export Only
Power Door Lock Relay, VIM - Export Only

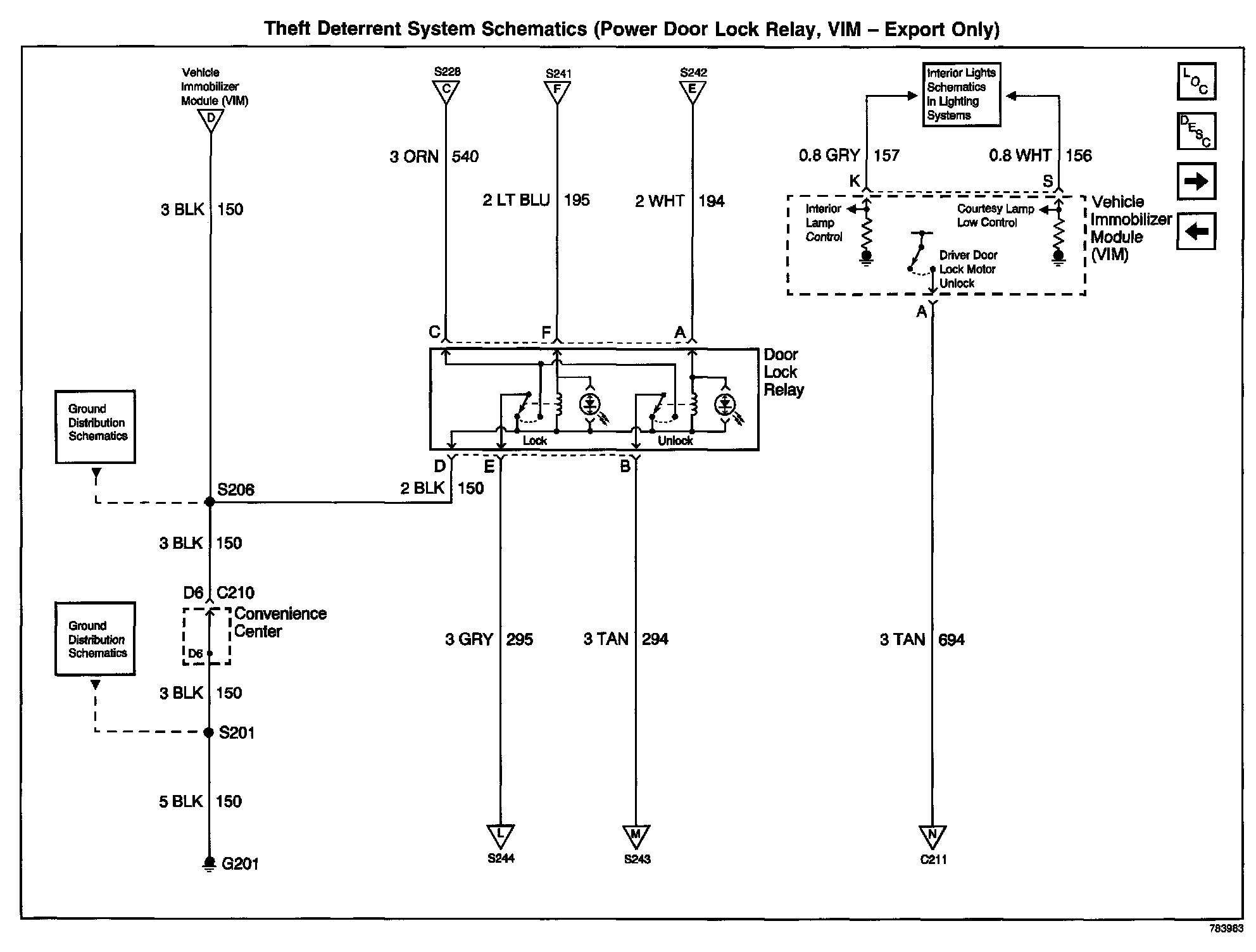

Theft Deterrent System Schematics: Power Door Lock Relay, VIM - Export Only:
