Home
>>
Chevy Truck
>>
2002
>>
Express 1/2 Ton Van V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Doors
Doors

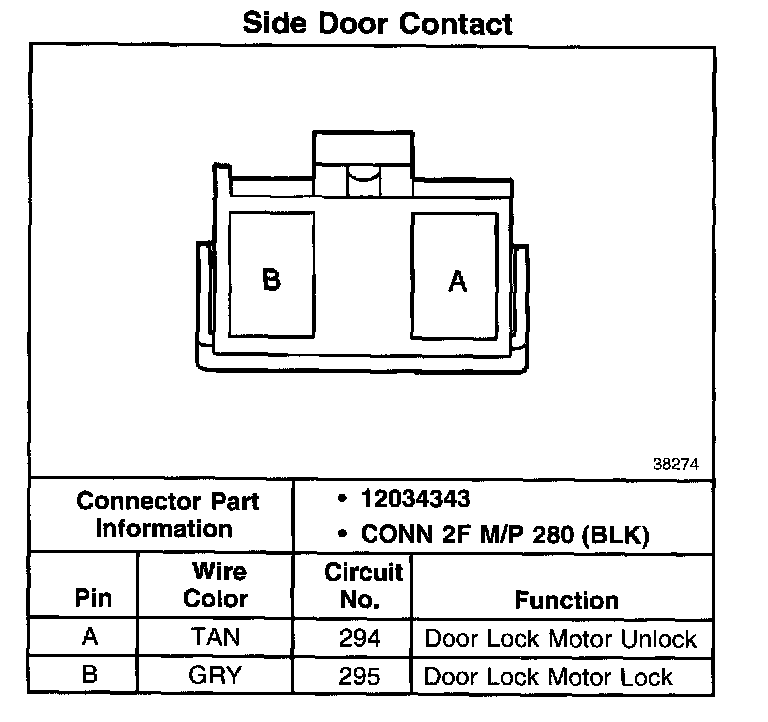

Side Door Contact:

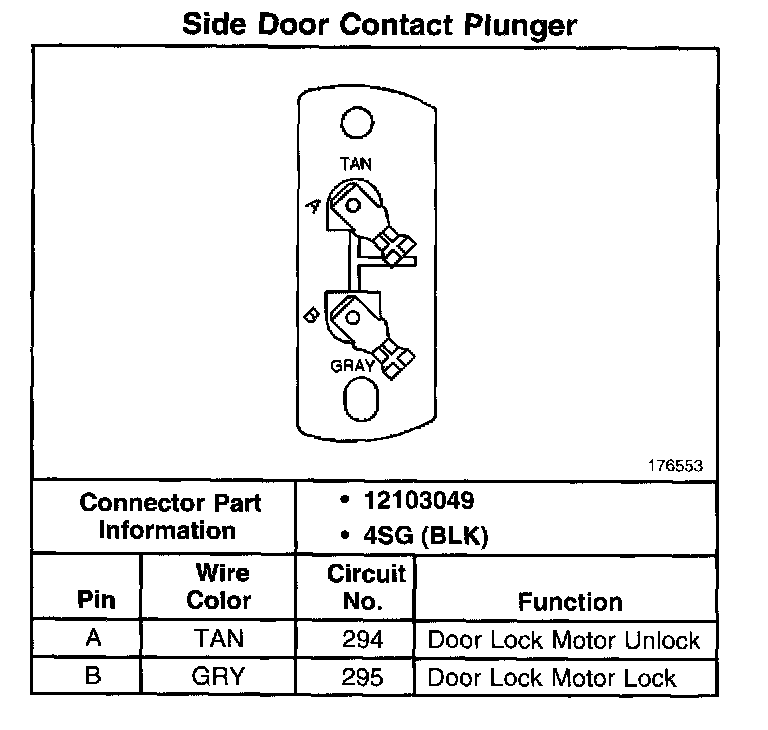

Side Door Contact Plunger:
