Home >> Chevy Truck >> 2002 >> Express 1/2 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> C400-C419 >> C400 (W/O Keyless Entry)

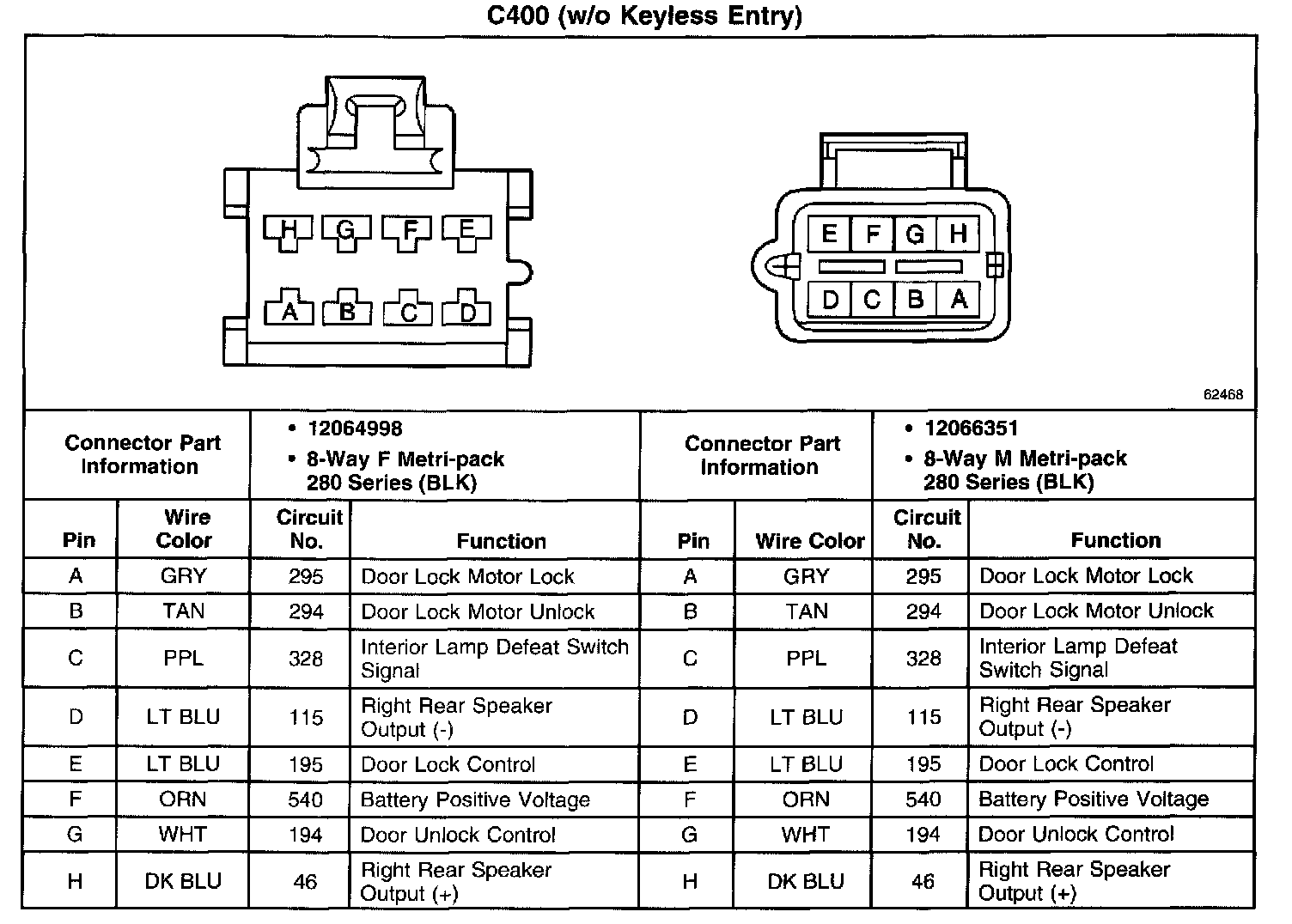

C400 (W/O Keyless Entry)

C400 (W/O Keyless Entry):
