Home
>>
Chevy Truck
>>
2002
>>
Express 1/2 Ton Van V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C200-C225
>>
C225
C225

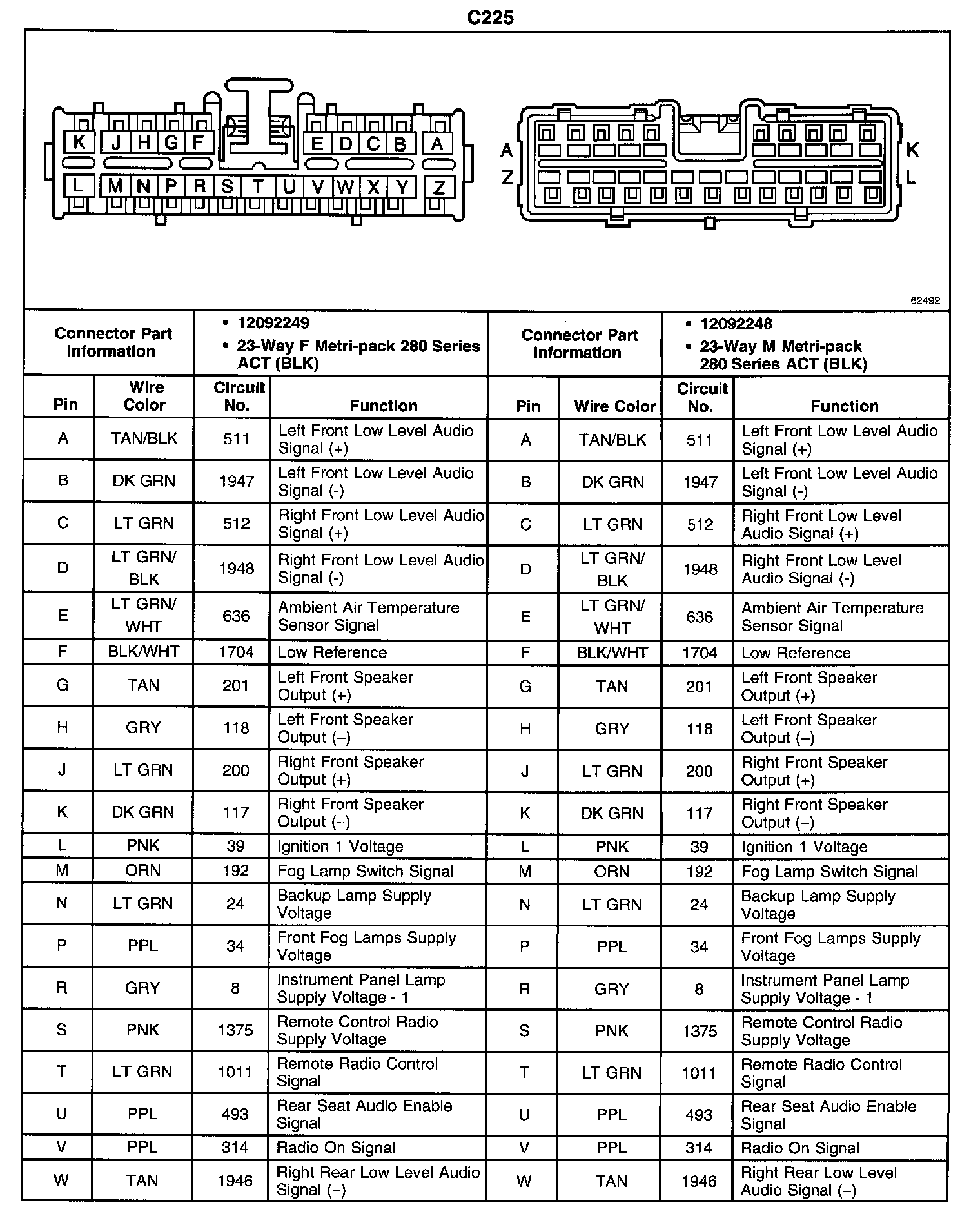

C225 Part 1:

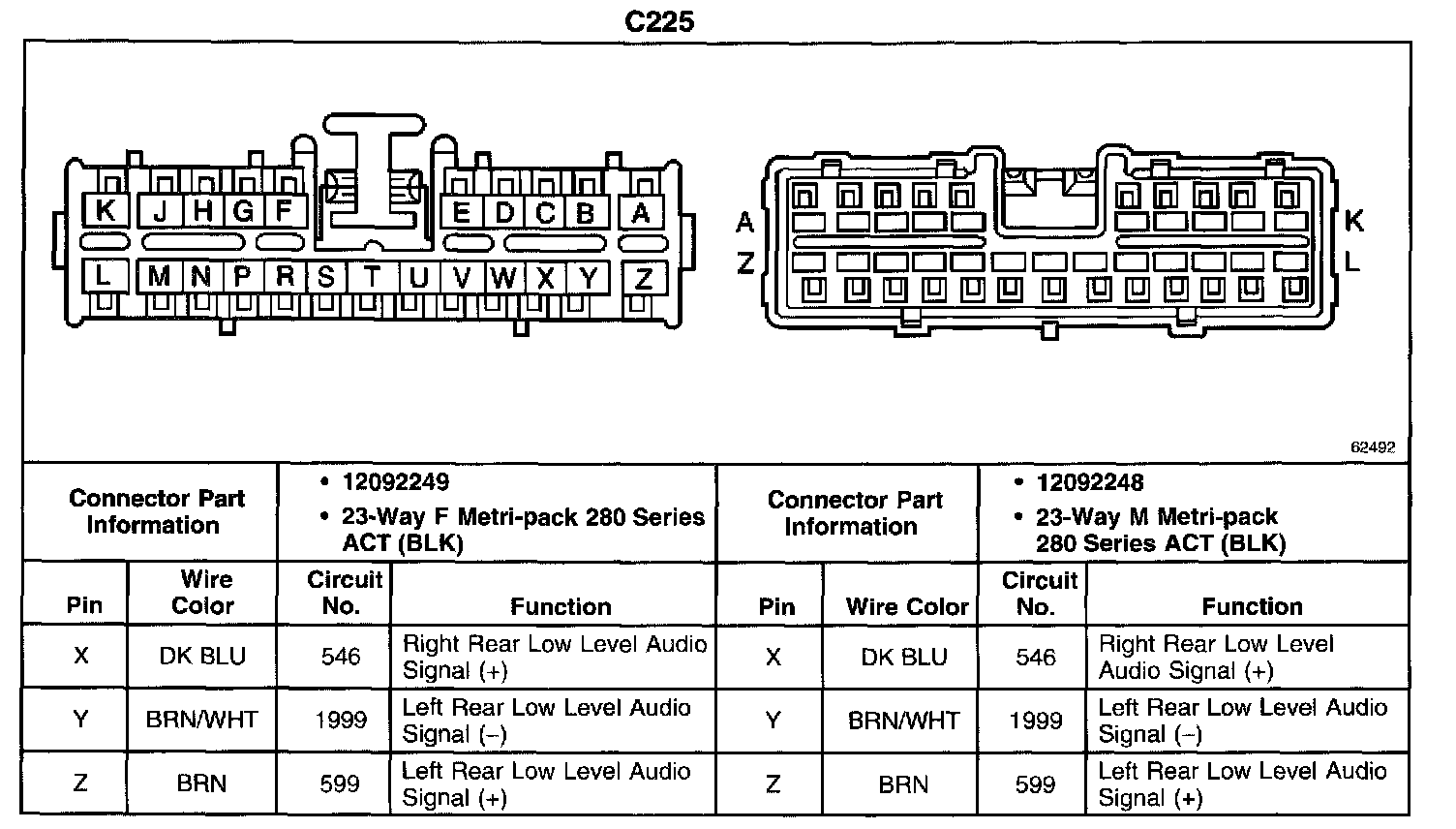

C225 Part 2:
