Home
>>
Chevy Truck
>>
2002
>>
Express 1/2 Ton Van V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>

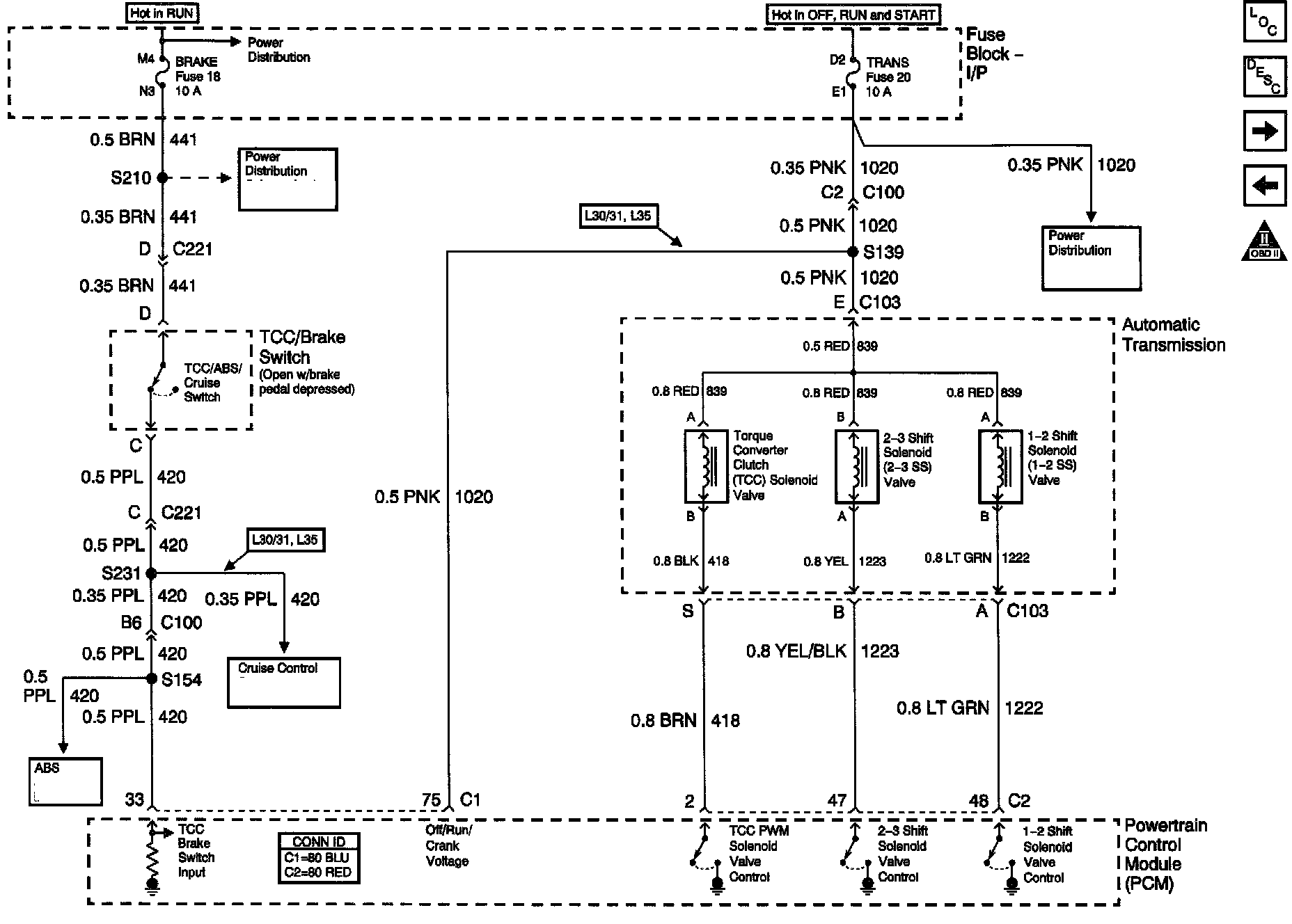

4L80-E/4L85-E Automatic Transmission
>>
(Solenoid and TCC/Brake Switch Controls)
(Solenoid and TCC/Brake Switch Controls)
