Chassis/Canister

REMOVAL PROCEDURE




1. Remove the fuel bundle between the engine and EVAP canister.

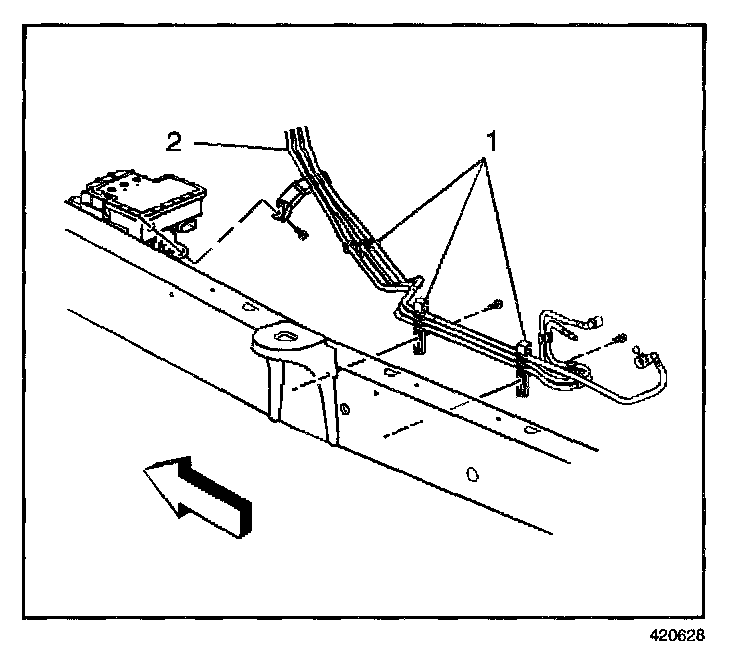

2. Remove the EVAP purge pipe from the fuel bundle retaining clips (1).

INSTALLATION PROCEDURE




1. Install the EVAP purge pipe in the fuel bundle retaining clips (1).
2. Install the fuel bundle.
- Chassis (Filter to Tank Cutaway Van Side Tank) or Fuel Hose/Pipes Replacement
- Chassis (Filter to Tank Cutaway Van Rear Tank).
