Rear Channel Audio Inputs and Outputs
Rear Channel Audio Inputs and Outputs

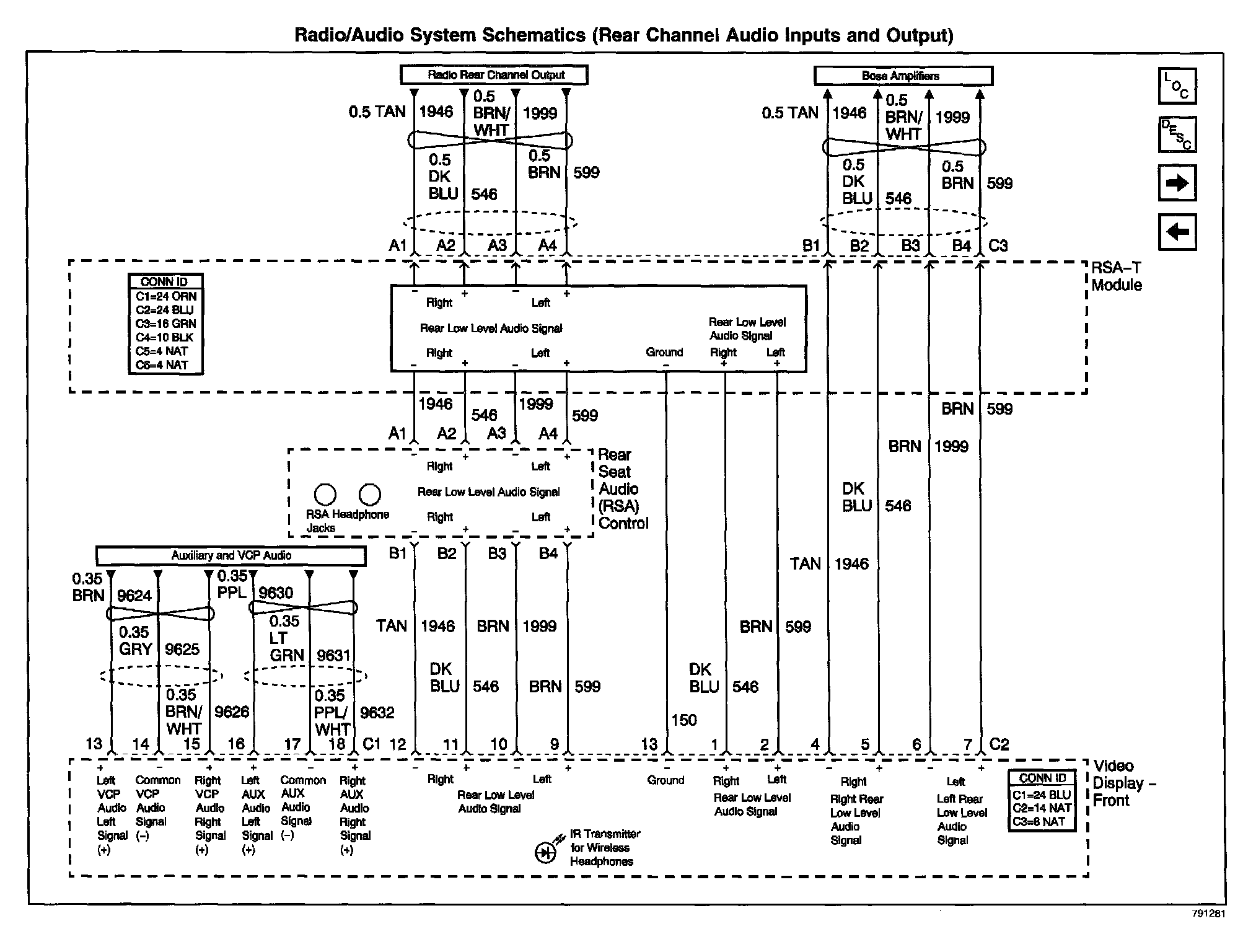

Radio/Audio System Schematics: Rear Channel Audio Inputs And Outputs:
