Chevy Truck
>>
2002
>>
Express 1/2 Ton Van V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antitheft and Alarm Systems
>>
Passlock
Passlock

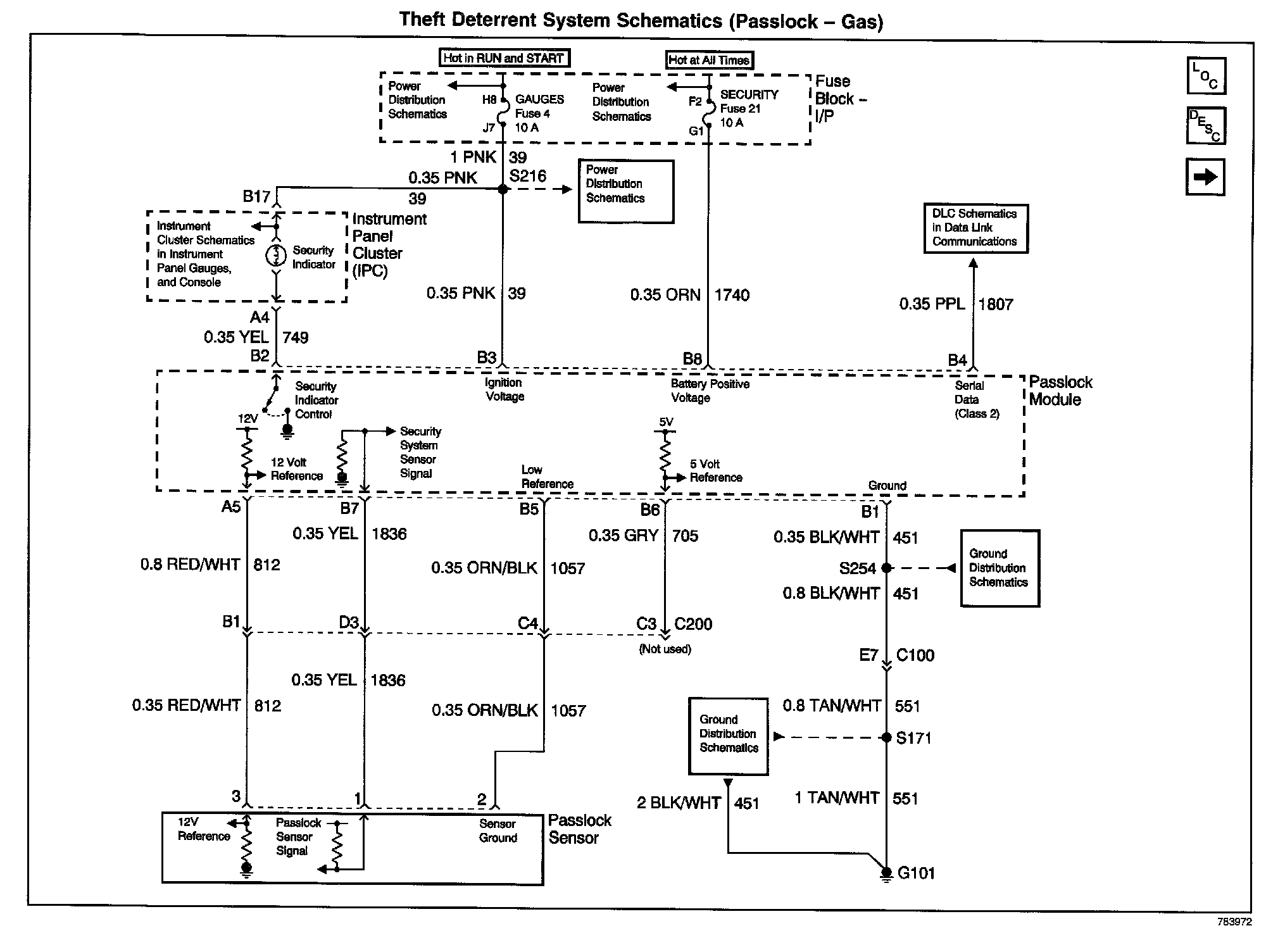

Theft Deterrent System Schematics: Passlock - Gas:
