Home
>>
Chevy Truck
>>
2002
>>
Express 1/2 Ton Van V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transmission Control Systems
>>
4L60-E/4L65-E Automatic Transmission
>>

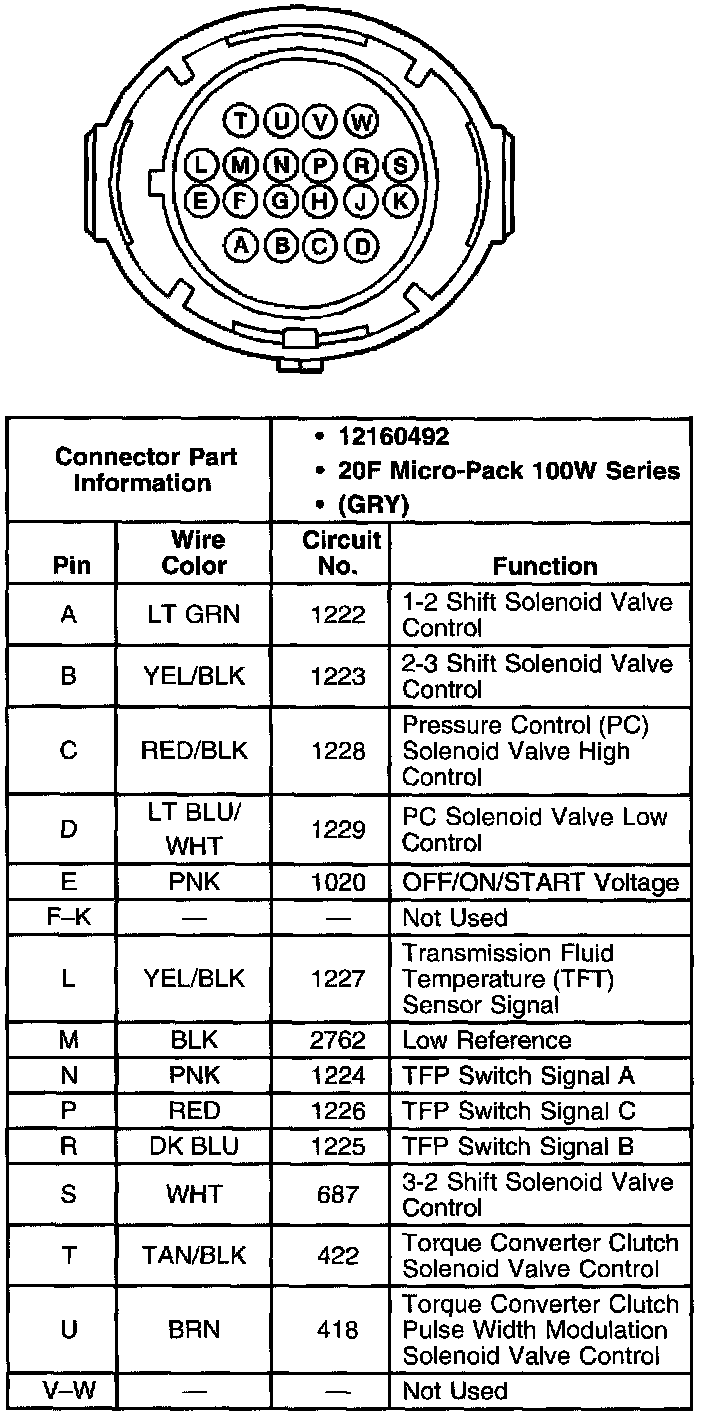

Inline Harness Connector C175, Engine Side
Inline Harness Connector C175, Engine Side
