Home
>>
Chevy Truck
>>
2002
>>
Express 1/2 Ton Van V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio, Stereo, and Compact Disc
>>
Amplifier, Sound System
>>
100 Watt Audio Amplifier
100 Watt Audio Amplifier

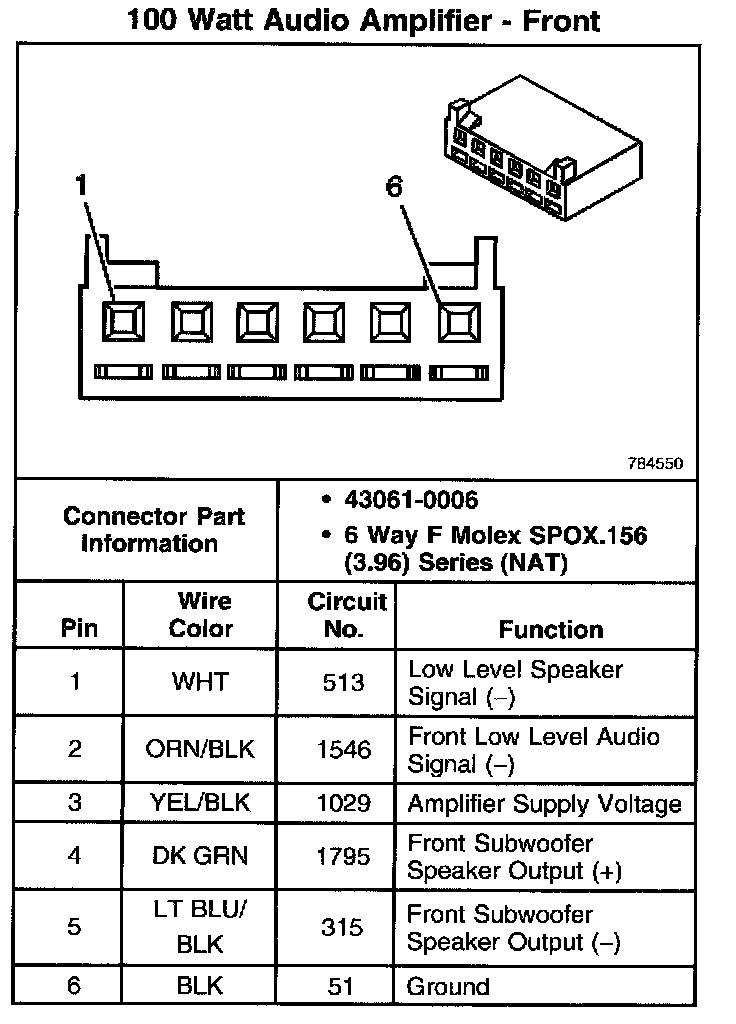

100 Watt Audio Amplifier - Front:

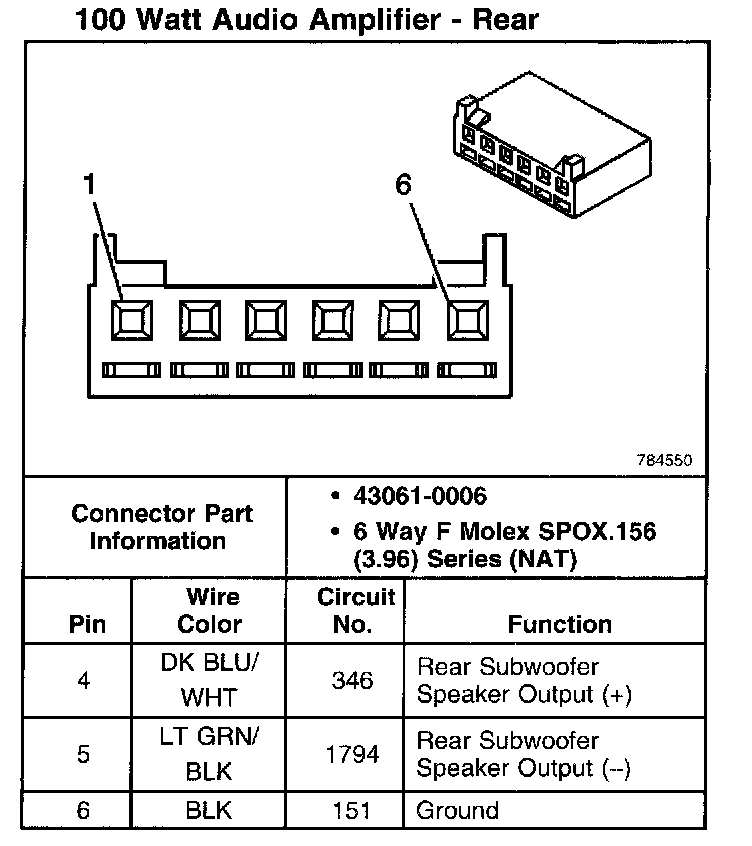

100 Watt Audio Amplifier - Rear Part 2:

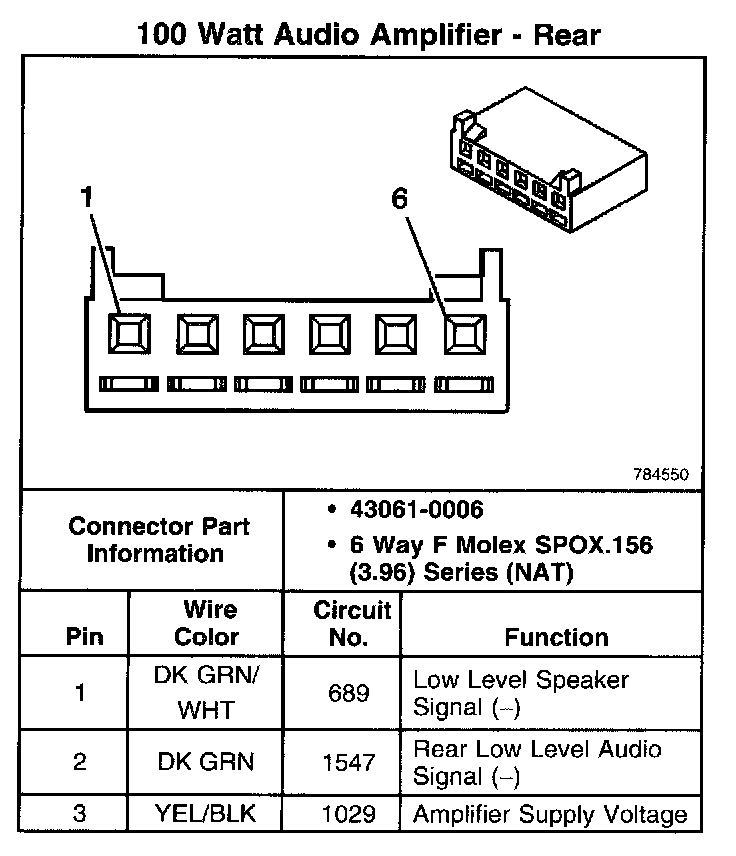

100 Watt Audio Amplifier - Rear Part 1:
