Upfitter Provisions Relay Connector

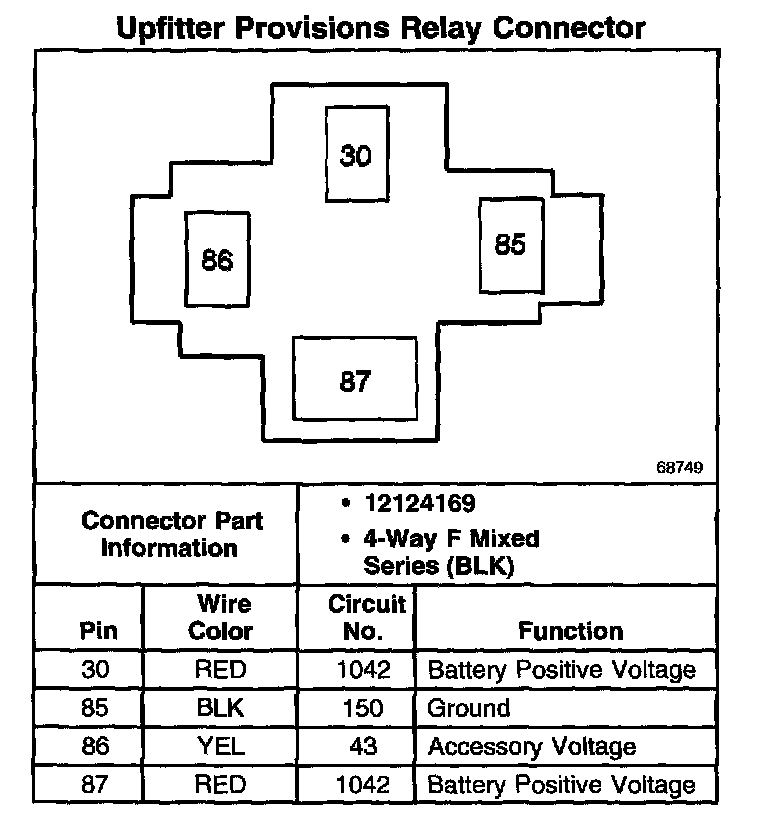

Upfitter Provisions Relay Connector
Upfitter Provisions Relay Connector:
