Home
>>
Chevy Truck
>>
2002
>>
C Tahoe 2WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Center Mounted Brake Lamp
>>
Diagrams
>>
Connector Views
Connector Views

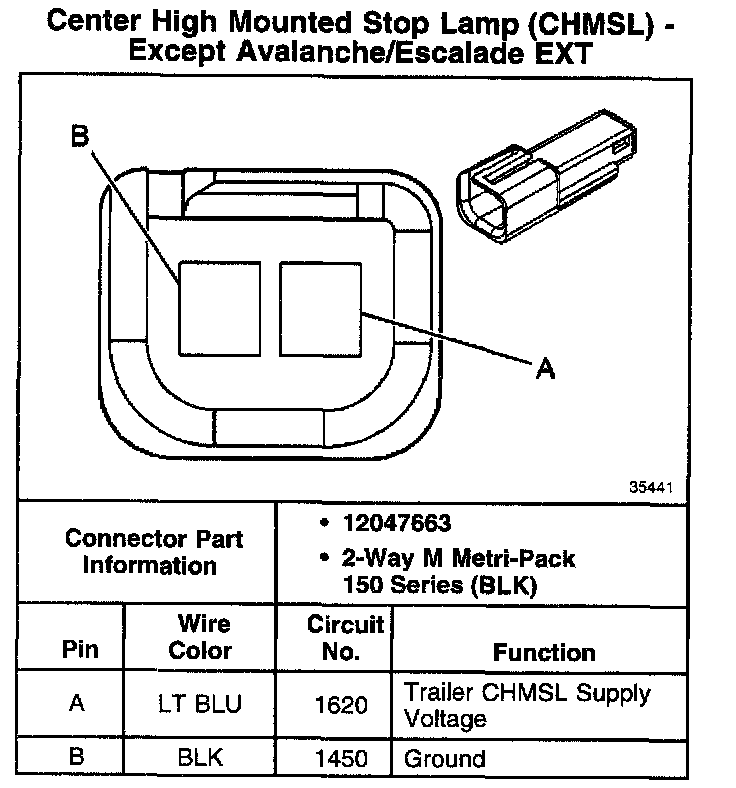

Center High Mounted Stop Lamp (CHMSL) - Except Avalanche/Escalade EXT:
