Chevy Truck
>>
2002
>>
C Tahoe 2WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>
Relay Block - Body
Relay Block - Body

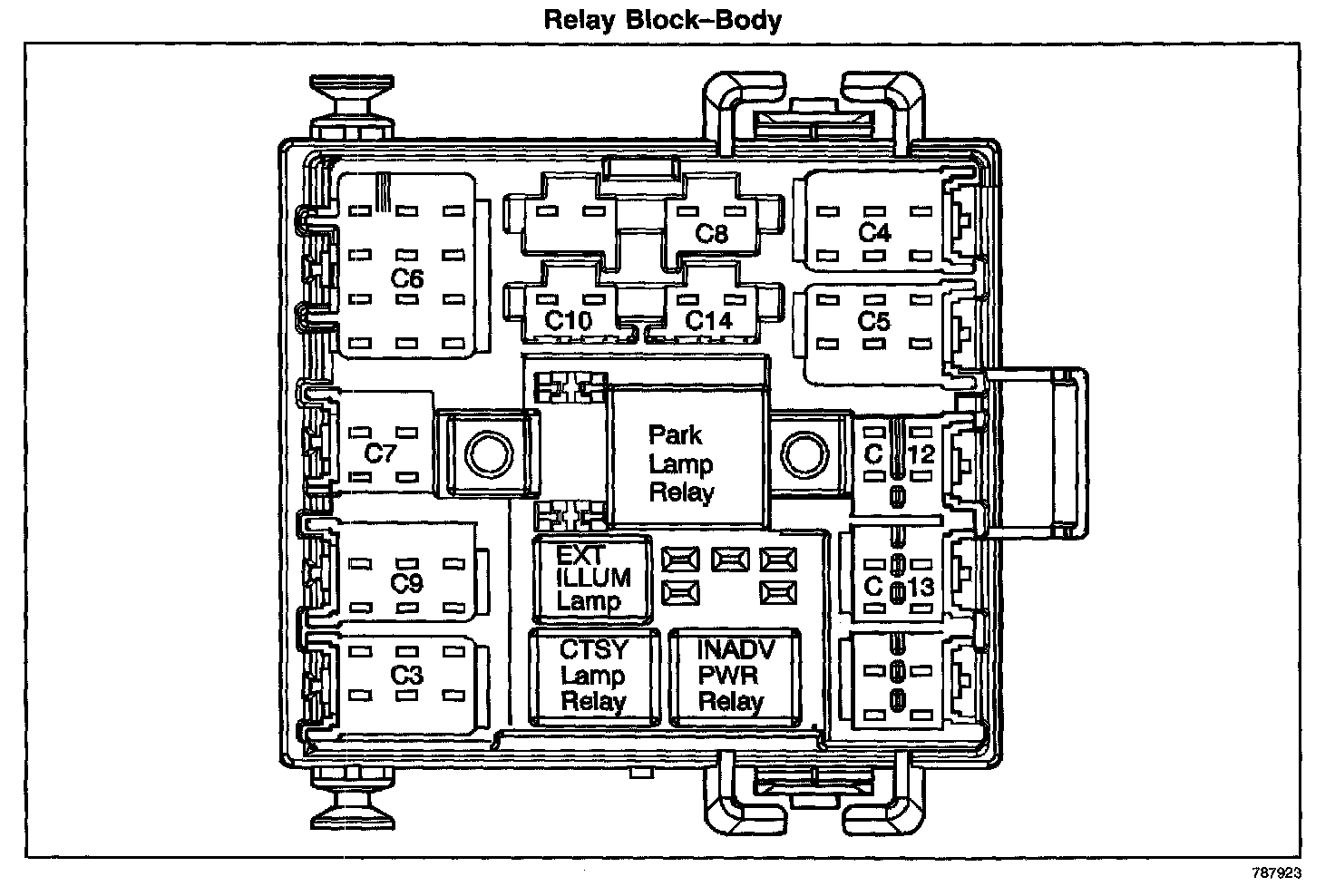

Relay Block - Body:
