Lock Striker Replacement - End Gate

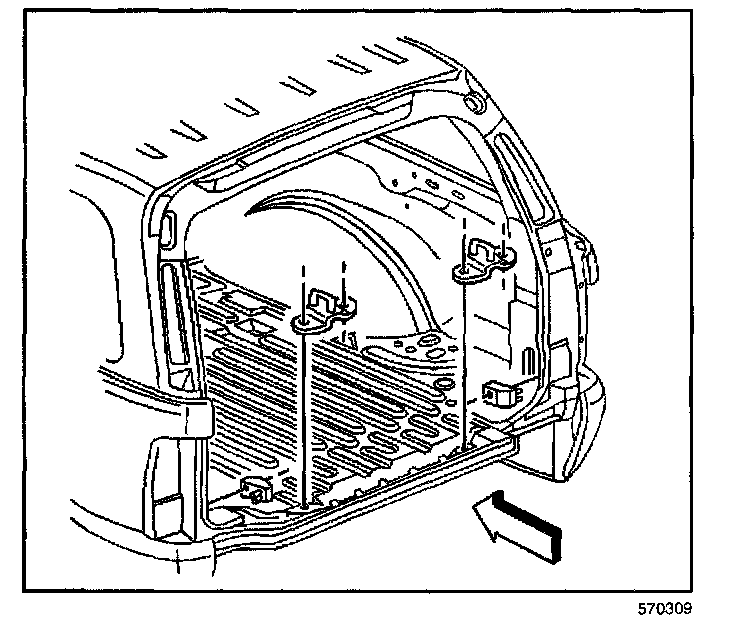

REMOVAL PROCEDURE




1. Remove the lower striker bolt.
2. Remove the striker.

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice Service Precautions.

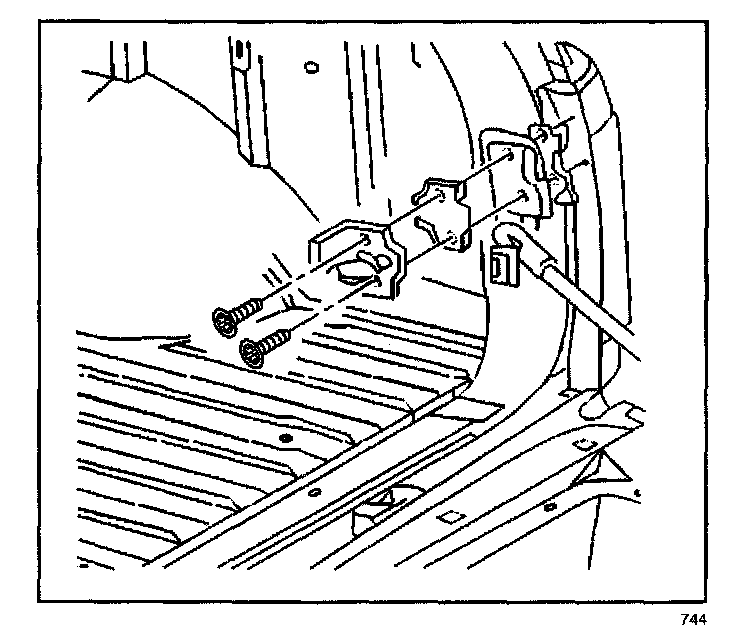

1. Install the striker.

Tighten
Tighten the bolts to 22 N.m (15 lb ft).

2. Install the trim panel.
