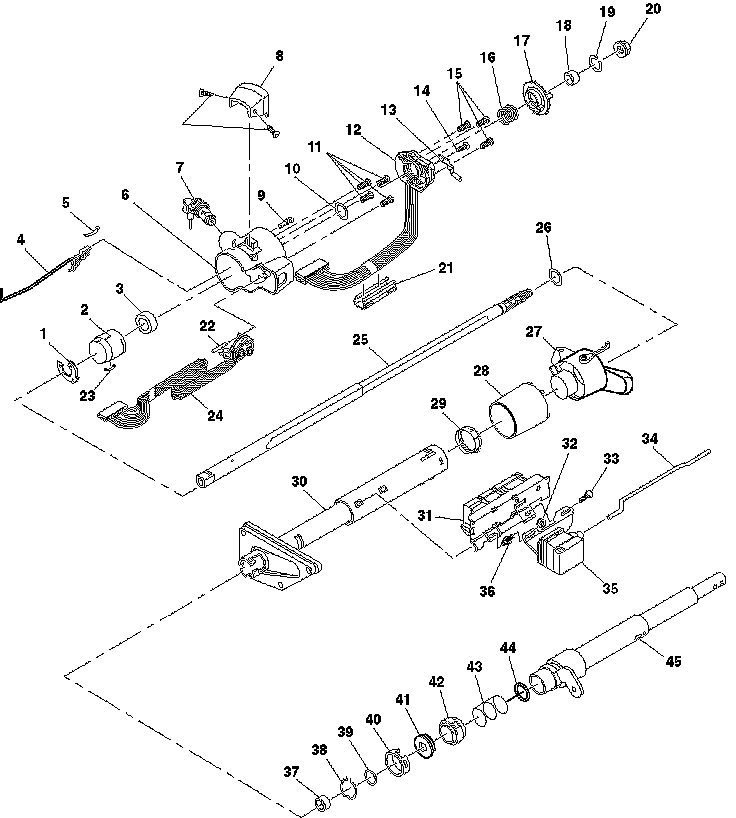

Steering Column Disassembled View (Column Shift)

Steering Column Disassembled View (Column Shift)

MD530 Standard Steering Column Column Shift




1 - Upper Bearing Retainer
2 - Bearing Retaining Bushing
3 - Bearing Assembly
4 - Ignition Switch Actuator Assembly
5 - Rack Preload Spring
6 - Steering Column Housing Assembly
7 - Steering Column Lock Cylinder Set
8 - Transmission Indicator Dial and Housing Assembly
9 - Lock Retaining Screw
10 - Thrust Washer
11 - Hexagon Washer Head Tapping Screw
12 - Turn Signal switch Assembly
13 - Switch Actuator Arm
14 - Round Washer Head Screw (M4.2 x 1.41)
15 - Binding Head Cross Recess Screw
16 - Upper Bearing Spring
17 - Turn Signal Cancelling Cam Assembly
18 - Steering Shaft Spacer
19 - Bearing Retainer
20 - Hexagon Jam Nut (M14 x 1.5)
21 - Wiring Protector
22 - Switch Actuator Pivot Pin
23 - Horn Circuit Contact
24 - Pivot and Pulse Switch Assembly
25 - Steering Shaft Assembly
26 - Retaining Ring
27 - Gearshift Lever Bowl
28 - Gearshift Bowl Shroud
29 - Bowl Lower Bearing
30 - Steering Column Jacket Assembly
31 - Ignition Switch Assembly
32 - Flat Head Screw
33 - Washer Head Screw (#10 - 24 x.25)
34 - Dimmer Switch Actuator Rod
35 - Dimmer Switch Assembly
36 - Dimmer and Ignition Switch Mounting Stud
37 - Shaft Sleeve
38 - Lower Bearing Adapter Clip
39 - Lower Spring Retainer
40 - Bearing Adapter Retainer
41 - Bearing Assembly
42 - Lower Bearing Adapter
43 - Shift Tube Return Spring
44 - Spring Thrust Washer
45 - Shift Tube Assembly
