Clutch Switch: Service and Repair

Clutch Start Switch Replacement

Removal Procedure

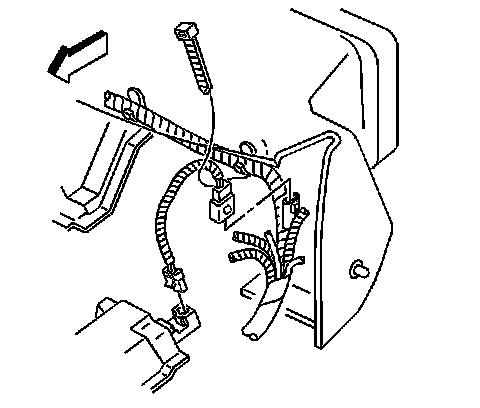

1. Disconnect the clutch engine brake switch electrical harness connector.




2. Remove the clutch engine brake switch retainer.

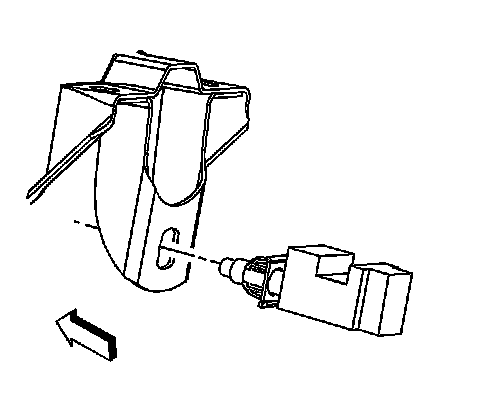

3. Remove the clutch engine brake switch.

Installation Procedure




1. Install the clutch engine brake switch.
2. Install the clutch engine brake switch retainer.




3. Connect the clutch engine brake switch electrical harness connector.
