Data Link Connector (DLC) Schematics (LG5)
Data Link Connector (DLC) Schematics (LG5)
Data Link Connector (DLC) Schematics (LG5)
Data Link Connector (1 of 2)

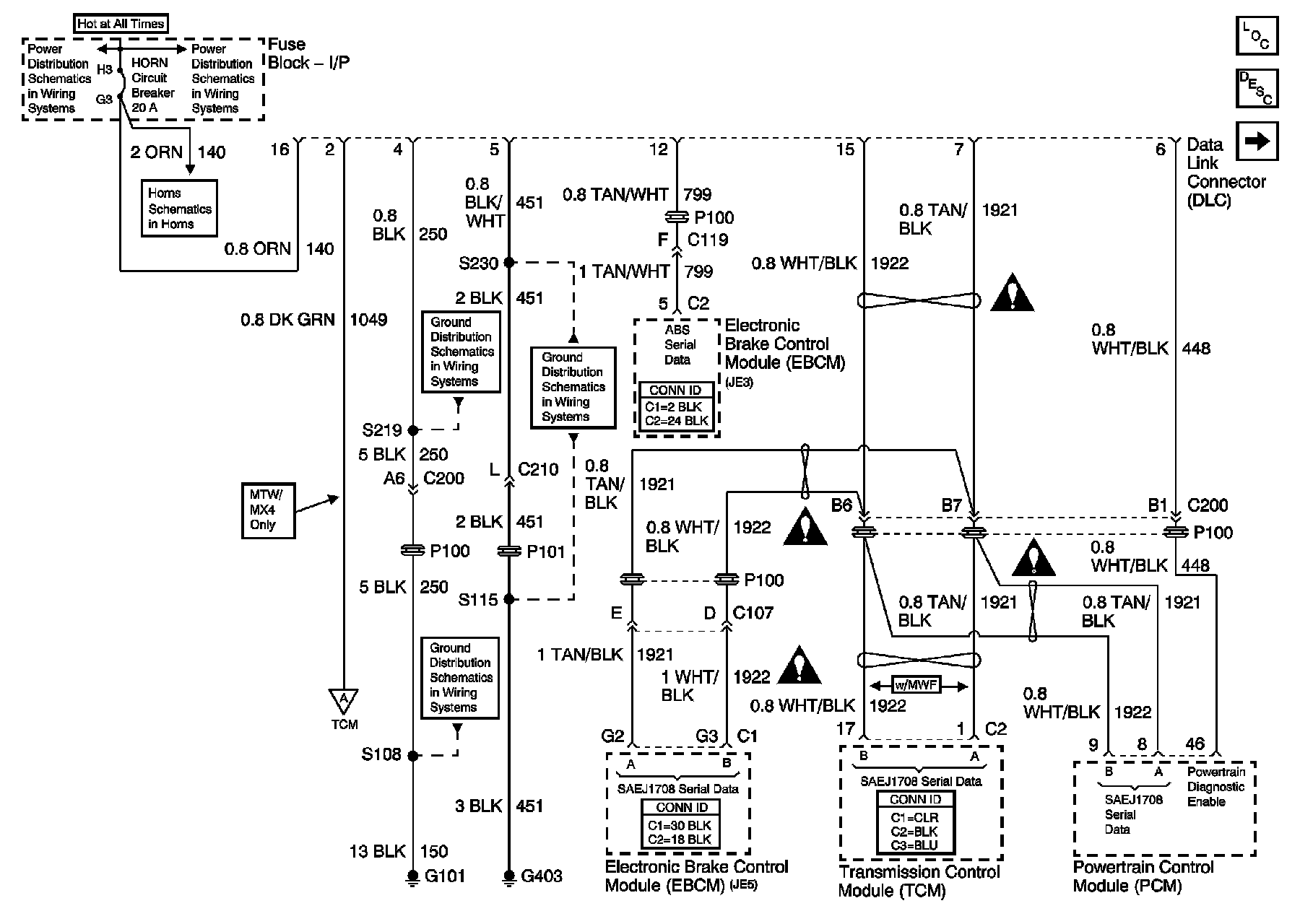

Data Link Connector (2 of 2)
