Chevy Truck
>>
2002
>>
C 7500 Kodiak V8-8.1L VIN E
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Relay Box
>>
Locations
>>
Electrical Center Identification Views (Fuse Block I/P)
Electrical Center Identification Views (Fuse Block I/P)
Electrical Center Identification Views (Fuse Block I/P)

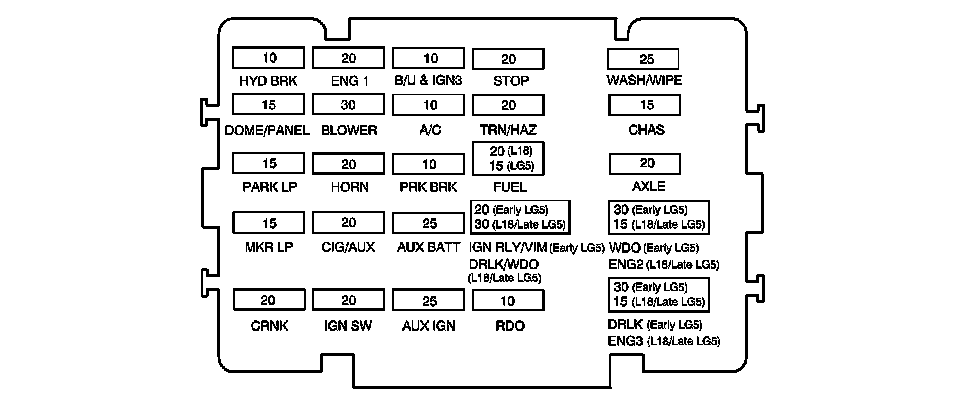

Fuse Block - I/P - Front View
